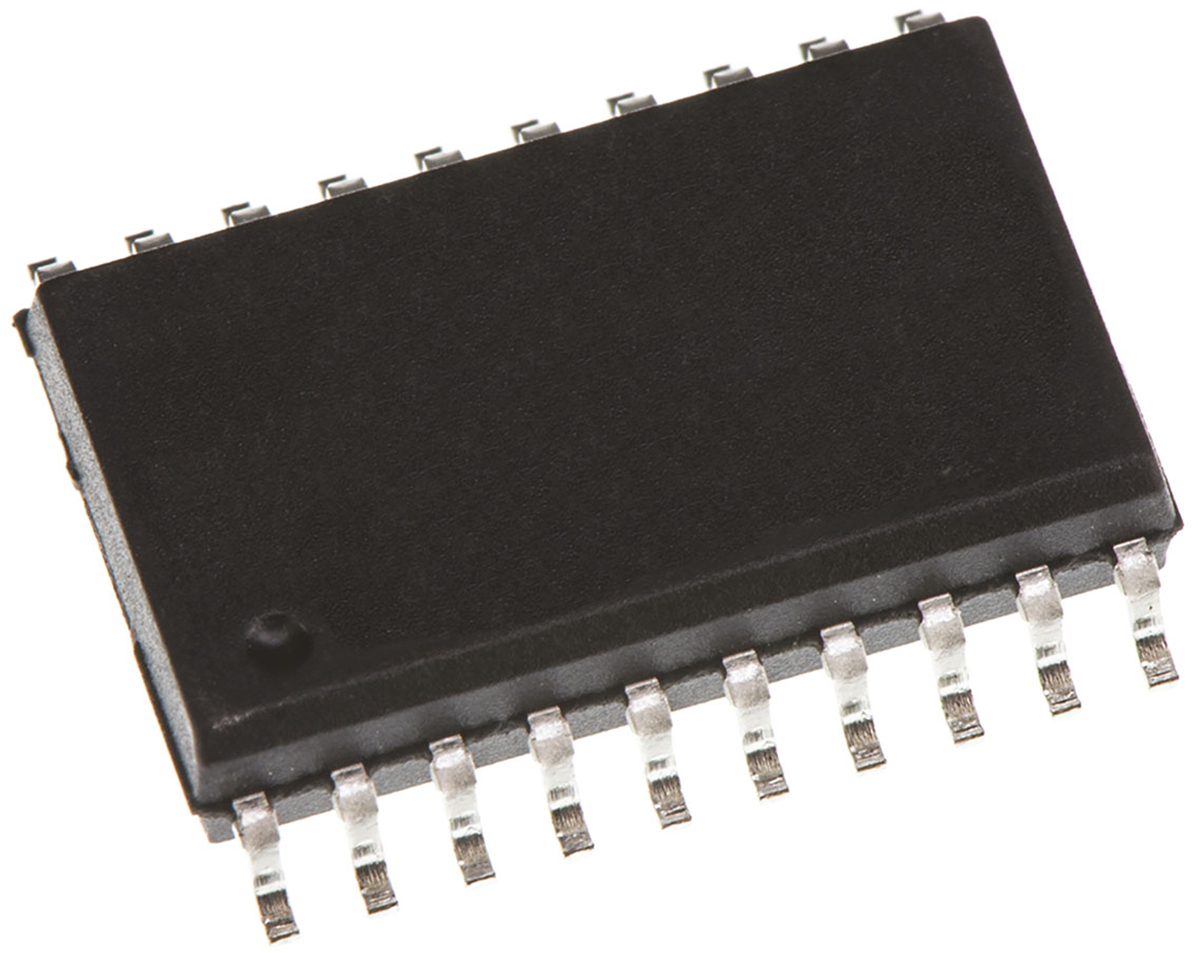

onsemi MM74HC541WMX Octal-Channel Buffer & Line Driver, 3-State, Inverting, 20-Pin SOIC

Enrgtech Part No: ET21470747
|
Manufacturer Part No:
MM74HC541WMX
|
Manufacturer: onsemi

MM74HC541WMX onsemi Octal-Channel Buffer & Line Driver, 3-State, Inverting, 20-Pin SOIC

MM74HC541WMX

MM74HC541WMX onsemi Octal-Channel Buffer & Line Driver, 3-State, Inverting, 20-Pin SOIC

onsemi

(0)

Product Information

Polarity:

Inverting

Maximum Low Level Output Current:

7.8mA

Dimensions:

13.005 x 7.595 x 2.34mm

Mounting Type:

Surface Mount

Maximum Propagation Delay Time @ Maximum CL:

208ns

Number of Channels per Chip:

8

Logic Function:

Buffer

Logic Family:

74HC

Package Type:

SOIC

Output Type:

3 State

Input Type:

LS-TTL

Maximum Operating Supply Voltage:

6 V

Checking for live stock

This is Octal-Channel Buffer & Line Driver 3-State Inverting 20-Pin SOIC manufactured by onsemi. The manufacturer part number is MM74HC541WMX. The given dimensions of the product include 13.005 x 7.595 x 2.34mm. The product is available in surface mount configuration. Furthermore, it has a3 state output. It carries ls-ttl input type. It is assigned with possible HTSUS value of 8542.39.0001. The product is rohs3 compliant. The product has -40°c ~ 85°c (ta) operating temperature range. Moreover, the product comes in [Package/ Case]. The product consists of 8 bits per element. In addition, it is reach unaffected. Furthermore, it has a3-state output. It is shipped in tape & reel (tr). Its typical moisture sensitivity level is 3 (168 hours). It has a long 29 weeks standard lead time. The product 74hc, is a highly preferred choice for users. The product is a buffer, non-inverting logic type. 20-soic is the supplier device package value. It has optimum voltage supply of 2v ~ 6v. The high and low output current of the product is 7.8ma, 7.8ma. It carries 1 elements. Moreover, it corresponds to 74hc541, a base product number of the product. The product is designated with the ear99 code number

MM74HC540, MM74HC541, Inverting Octal 3-State Buffer(Technical Reference)

onsemi RoHS(Environmental Information)

onsemi REACH(Environmental Information)

Assembly Change 16/Feb/2023(PCN Assembly/Origin)

Logo 17/Aug/2017(PCN Design/Specification)

Mult Devices 24/Oct/2017(PCN Packaging)
