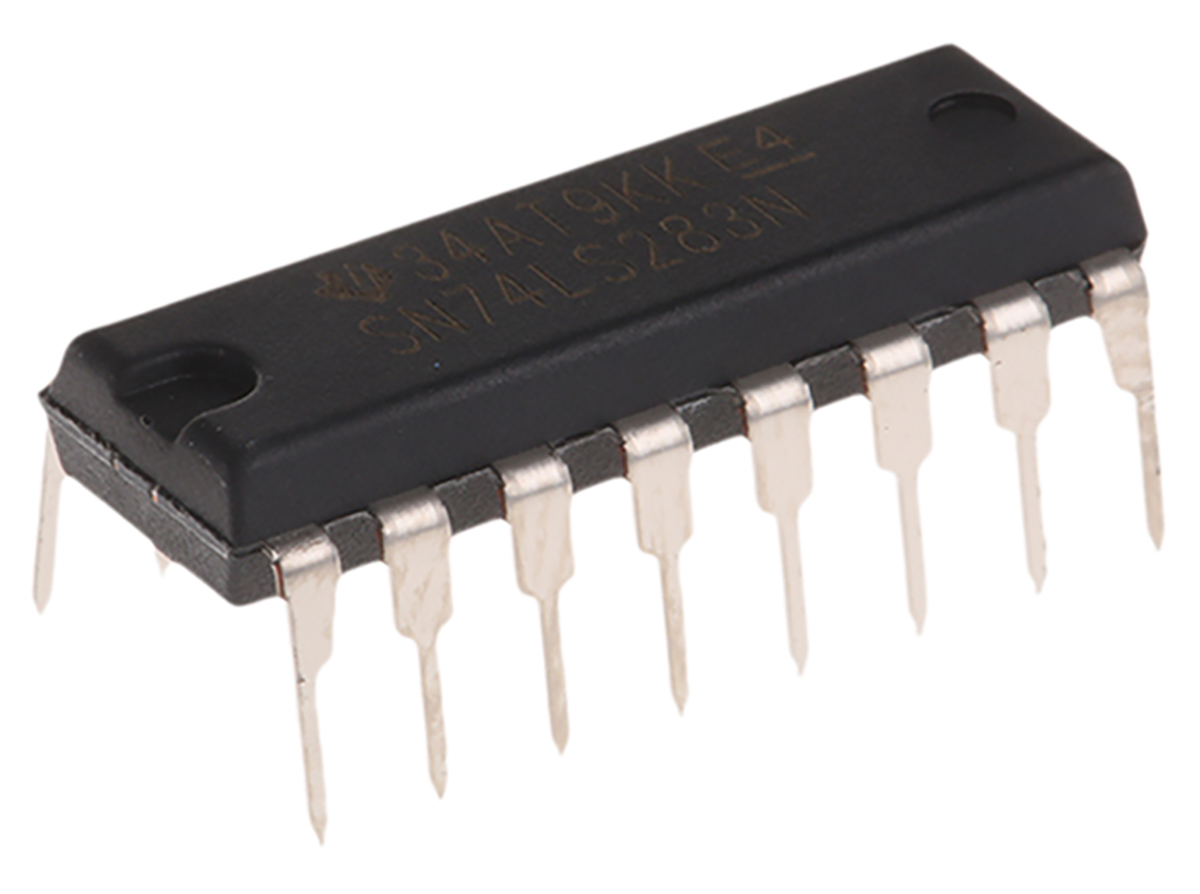

Texas Instruments SN74LS283N

SN74LS283N Texas Instruments
SN74LS283N
Texas Instruments

Product Information

Number of Bits:
4bit
Maximum Low Level Output Current:
8mA
Dimensions:
19.3 x 6.35 x 4.57mm
Mounting Type:
Through Hole
Maximum Propagation Delay Time @ Maximum CL:
24 ns @ 5 V
Minimum Operating Supply Voltage:
4.75 V
Logic Function:
Binary Full Adder
Logic Family:
LS
Maximum High Level Output Current:
-0.4mA
Package Type:
PDIP
Number of Elements per Chip:
1
Minimum Operating Temperature:
0 °C
Maximum Operating Supply Voltage:
5.25 V
Maximum Operating Temperature:
70 °C
Pin Count:
16
Propagation Delay Test Condition:
15pF
HTSUS:
8542.39.0001
RoHS Status:
ROHS3 Compliant
Operating Temperature:
0°C ~ 70°C
Supply Voltage:
4.75V ~ 5.25V
Package / Case:
16-DIP (0.300", 7.62mm)
Number of Bits:
4
REACH Status:
REACH Unaffected
Package:
Tube
Moisture Sensitivity Level (MSL):
1 (Unlimited)
standardLeadTime:
6 Weeks
Mounting Type:
Through Hole
Series:
74LS
Logic Type:
Binary Full Adder with Fast Carry
Supplier Device Package:
16-PDIP
Base Product Number:
74LS283
ECCN:
EAR99
RoHs Compliant
Checking for live stock

This is manufactured by Texas Instruments. The manufacturer part number is SN74LS283N. The product consists of 4bit bits. The given dimensions of the product include 19.3 x 6.35 x 4.57mm. The product is available in through hole configuration. Whereas, the minimum operating temperature of the product is 0 °c. It has a maximum operating temperature of 70 °c. It is assigned with possible HTSUS value of 8542.39.0001. The product is rohs3 compliant. The product has 0°c ~ 70°c operating temperature range. Moreover, the product comes in [Package/ Case]. The product consists of 4 bits. In addition, it is reach unaffected. It is shipped in tube. Its typical moisture sensitivity level is 1 (unlimited). It has a long 6 weeks standard lead time. The product 74ls, is a highly preferred choice for users. The product is a binary full adder with fast carry logic type. 16-pdip is the supplier device package value. Moreover, it corresponds to 74ls283, a base product number of the product. The product is designated with the ear99 code number
