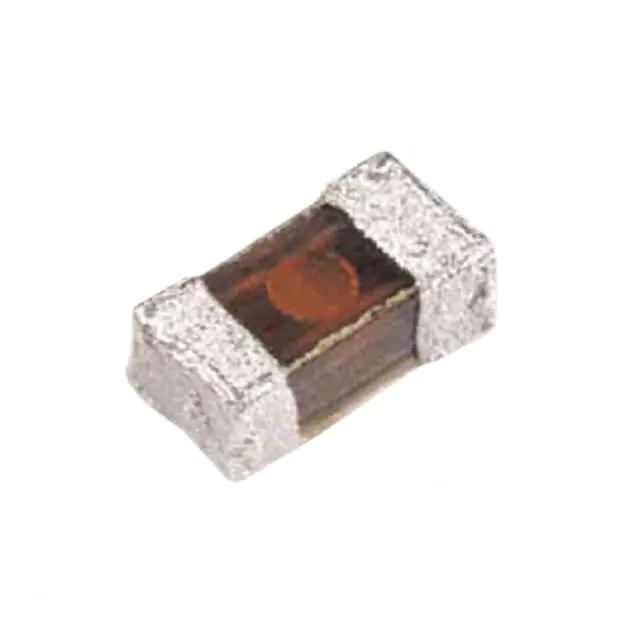

Eaton - Electronics Division 0603ESDA-AEC1

0603ESDA-AEC1 Eaton - Electronics Division
0603ESDA-AEC1 Eaton - Electronics Division
Eaton - Electronics Division

Product Information

Voltage - Clamping (Max) @ Ipp:
35V (Typ)
HTSUS:
8536.30.8000
Operating Temperature:
-55°C ~ 125°C
Package / Case:
0603 (1608 Metric)
Type:
Zener
Voltage - Breakdown (Min):
-
Applications:
Automotive, HDMI, USB
Package:
Tape & Reel (TR)
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Bidirectional Channels:
1
standardLeadTime:
15 Weeks
Current - Peak Pulse (10/1000µs):
-
Voltage - Reverse Standoff (Typ):
-
Mounting Type:
Surface Mount
Series:
Automotive, AEC-Q200
Supplier Device Package:
0603
Capacitance @ Frequency:
0.05pF @ 1MHz
Power Line Protection:
No
Power - Peak Pulse:
-
ECCN:
EAR99
Checking for live stock

This is manufactured by Eaton - Electronics Division. The manufacturer part number is 0603ESDA-AEC1. The maximum clamping voltage is 35v (typ). It is assigned with possible HTSUS value of 8536.30.8000. The product has -55°c ~ 125°c operating temperature range. Moreover, the product comes in [Package/ Case]. It comes in zener configuration. The product is widely employed in automotive, hdmi, usb. It is shipped in tape & reel (tr). Its typical moisture sensitivity level is 1 (unlimited). The product has 1 bidirectional channels. It has a long 15 weeks standard lead time. The product is available in surface mount configuration. The product automotive, aec-q200, is a highly preferred choice for users. 0603 is the supplier device package value. It has a nominal capacitance and frequency values of 0.05pf @ 1mhz. Power Line Protection: no. The product is designated with the ear99 code number
