Maximum Drain Source Voltage:
60 V
Typical Gate Charge @ Vgs:
5.1 nC @ 10 V
Mounting Type:
Surface Mount
Channel Mode:
Enhancement
Maximum Power Dissipation:
900 mW
Maximum Gate Source Voltage:
-20 V, +20 V
Maximum Gate Threshold Voltage:
2.5V
Height:
1.01mm
Width:
1.4mm
Length:
3.04mm
Maximum Drain Source Resistance:
155 mΩ

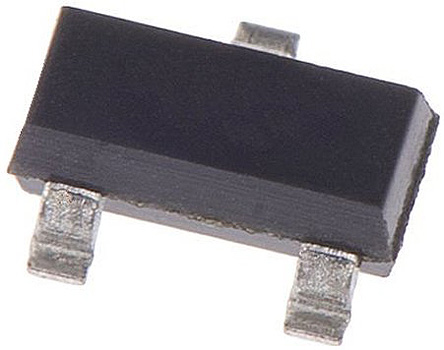

Package Type:
SOT-23
Number of Elements per Chip:
1
Minimum Operating Temperature:
-55 °C
Maximum Continuous Drain Current:
2.2 A
Transistor Material:
Si
Channel Type:
N
Maximum Operating Temperature:
+150 °C
Pin Count:
3
Transistor Configuration:
Single
FET Feature:
-
HTSUS:
8541.21.0095
Vgs(th) (Max) @ Id:
2.5V @ 250µA
Operating Temperature:
-55°C ~ 150°C (TJ)
Package / Case:
TO-236-3, SC-59, SOT-23-3
Rds On (Max) @ Id, Vgs:
155mOhm @ 1A, 10V
Gate Charge (Qg) (Max) @ Vgs:
2.8 nC @ 4.5 V
RoHS Status:
ROHS3 Compliant
REACH Status:
REACH Unaffected
FET Type:
N-Channel
Drive Voltage (Max Rds On, Min Rds On):
4.5V, 10V
Package:
Tape & Reel (TR)
Drain to Source Voltage (Vdss):
60 V
Vgs (Max):
±20V
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Power Dissipation (Max):
900mW (Ta)
Input Capacitance (Ciss) (Max) @ Vds:
182 pF @ 25 V
standardLeadTime:
65 Weeks
Mounting Type:
Surface Mount
Series:
-
Supplier Device Package:
SOT-23-3 (TO-236)
Current - Continuous Drain (Id) @ 25°C:
1.7A (Ta)
Technology:
MOSFET (Metal Oxide)
Base Product Number:
NTR5198
ECCN:
EAR99
