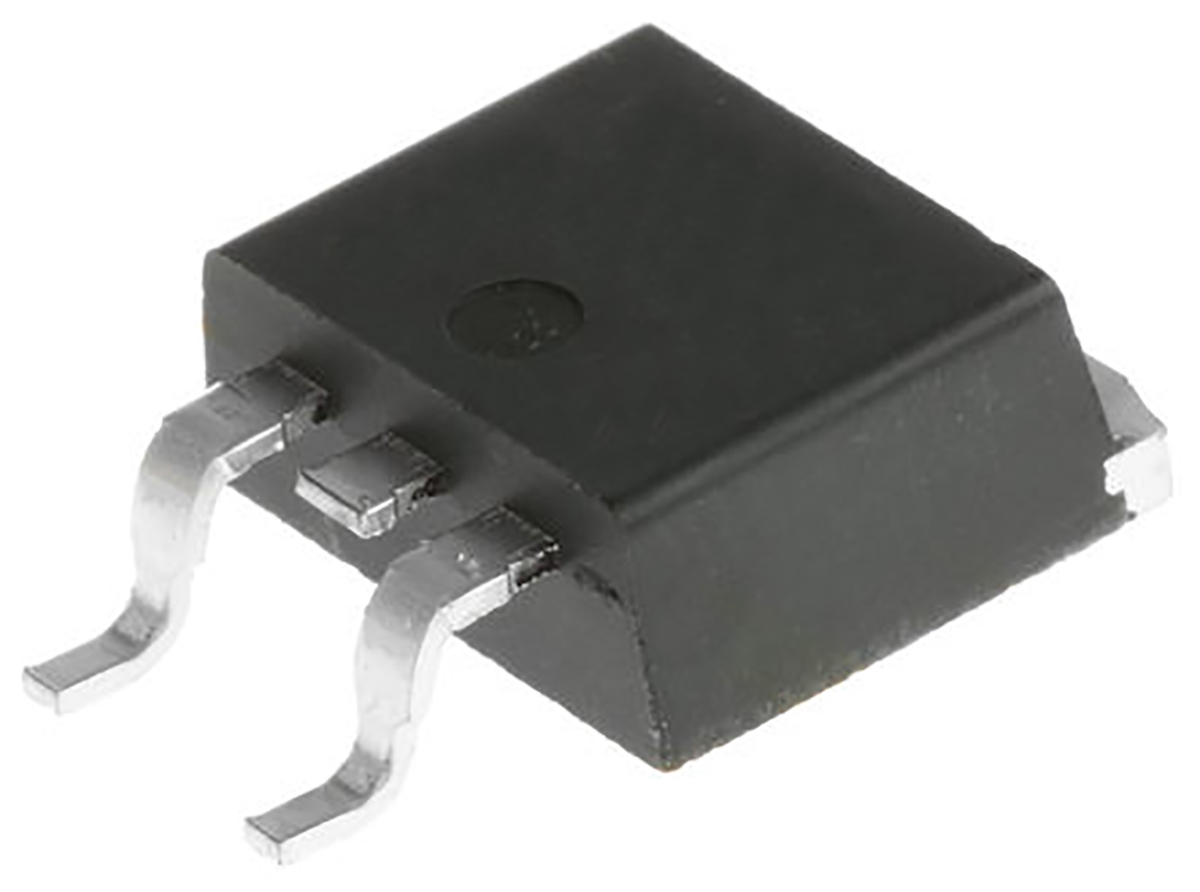

Vishay IRF540SPBF N-channel MOSFET, 28 A, 100 V, 3-Pin D2PAK

IRF540SPBF Vishay N-channel MOSFET, 28 A, 100 V, 3-Pin D2PAK
IRF540SPBF
Vishay

Product Information

Maximum Drain Source Voltage:
100 V
Typical Gate Charge @ Vgs:
72 nC @ 10 V
Mounting Type:
Surface Mount
Channel Mode:
Enhancement
Maximum Power Dissipation:
3.7 W
Maximum Gate Source Voltage:
-20 V, +20 V
Height:
4.83mm
Width:
9.65mm
Length:
10.67mm
Minimum Gate Threshold Voltage:
2V
Package Type:
D2PAK (TO-263)
Number of Elements per Chip:
1
Minimum Operating Temperature:
-55 °C
Maximum Continuous Drain Current:
28 A
Transistor Material:
Si
Maximum Drain Source Resistance:
77 mΩ
Channel Type:
N
Maximum Operating Temperature:
+175 °C
Pin Count:
3
Transistor Configuration:
Single
RoHs Compliant
Checking for live stock

This is N-channel MOSFET 28 A 100 V 3-Pin D2PAK manufactured by Vishay. The manufacturer part number is IRF540SPBF. The product is available in surface mount configuration. In addition, the height is 4.83mm. Furthermore, the product is 9.65mm wide. Its accurate length is 10.67mm. Whereas, the minimum operating temperature of the product is -55 °c. The product is available in [Cannel Type] channel. It has a maximum operating temperature of +175 °c.
