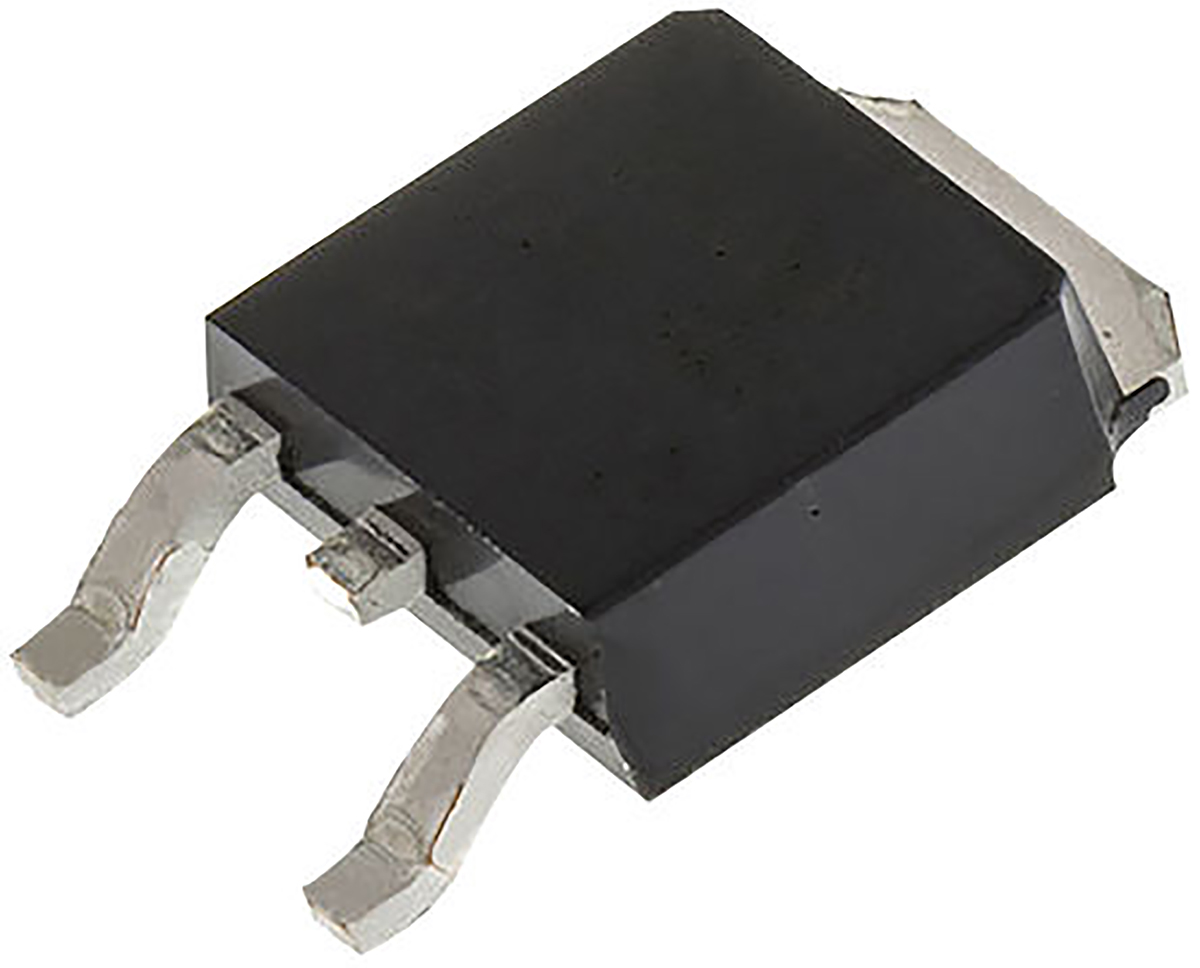

Vishay IRFR9120PBF P-channel MOSFET, 5.6 A, 100 V, 3-Pin TO-252

IRFR9120TRPBF Vishay IRFR9120PBF P-channel MOSFET, 5.6 A, 100 V, 3-Pin TO-252
IRFR9120TRPBF
Vishay

Product Information

Maximum Drain Source Voltage:
100 V
Typical Gate Charge @ Vgs:
18 nC @ 10 V
Mounting Type:
Surface Mount
Channel Mode:
Enhancement
Maximum Power Dissipation:
42 W
Maximum Gate Source Voltage:
-20 V, +20 V
Height:
2.38mm
Width:
6.22mm
Length:
6.73mm
Minimum Gate Threshold Voltage:
2V
Package Type:
DPAK (TO-252)
Number of Elements per Chip:
1
Minimum Operating Temperature:
-55 °C
Maximum Continuous Drain Current:
5.6 A
Transistor Material:
Si
Maximum Drain Source Resistance:
600 mΩ
Channel Type:
P
Maximum Operating Temperature:
+150 °C
Pin Count:
3
Transistor Configuration:
Single
RoHs Compliant
Checking for live stock

This is IRFR9120PBF P-channel MOSFET 5.6 A 100 V 3-Pin TO-252 manufactured by Vishay. The manufacturer part number is IRFR9120TRPBF. The product is available in surface mount configuration. In addition, the height is 2.38mm. Furthermore, the product is 6.22mm wide. Its accurate length is 6.73mm. Whereas, the minimum operating temperature of the product is -55 °c. The product is available in [Cannel Type] channel. It has a maximum operating temperature of +150 °c.

pdf icon
IRFR9120, IRFU9120, SiHFR9120, SiHFU9120, Power MOSFET(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)
