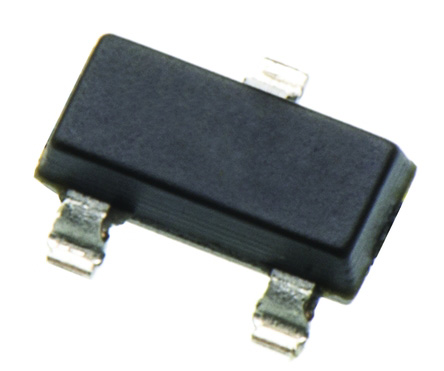

Diodes Inc DMG3402L-7 N-channel MOSFET, 4 A, 30 V, 3-Pin SOT-23

DMG3402L-7 Diodes Inc N-channel MOSFET, 4 A, 30 V, 3-Pin SOT-23
DiodesZetex

Product Information

Maximum Continuous Drain Current:
4 A
Transistor Material:
Si
Width:
1.4mm
Transistor Configuration:
Single
Maximum Drain Source Voltage:
30 V
Maximum Gate Threshold Voltage:
1.4V
Package Type:
SOT-23
Number of Elements per Chip:
1
Minimum Gate Threshold Voltage:
0.6V
Maximum Operating Temperature:
+150 °C
Typical Gate Charge @ Vgs:
11.7 nC @ 10 V
Channel Type:
N
Length:
3mm
Pin Count:
3
Channel Mode:
Enhancement
Mounting Type:
Surface Mount
Maximum Power Dissipation:
1.4 W
Maximum Gate Source Voltage:
-12 V, +12 V
Height:
1mm
Minimum Operating Temperature:
-55 °C
Forward Diode Voltage:
1.16V
Maximum Drain Source Resistance:
85 mΩ
RoHs Compliant
Checking for live stock

This is Diodes Inc N-channel MOSFET 4 A 30 V 3-Pin SOT-23 manufactured by DiodesZetex. The manufacturer part number is DMG3402L-7. Furthermore, the product is 1.4mm wide. It has a maximum operating temperature of +150 °c. The product is available in [Cannel Type] channel. Its accurate length is 3mm. The product is available in surface mount configuration. In addition, the height is 1mm. Whereas, the minimum operating temperature of the product is -55 °c.

pdf icon
DMG3402L, N-Channel Enhancement Mode Field Effect Transistor(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)

Reviews

  • Be the first to review.

FAQs

Yes. You can also search DMG3402L-7 on website for other similar products.
We accept all major payment methods for all products including ET13856052. Please check your shopping cart at the time of order.
You can order DiodesZetex brand products with DMG3402L-7 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in MOSFETs category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Diodes Inc DMG3402L-7 N-channel MOSFET, 4 A, 30 V, 3-Pin SOT-23. You can also check on our website or by contacting our customer support team for further order details on Diodes Inc DMG3402L-7 N-channel MOSFET, 4 A, 30 V, 3-Pin SOT-23.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET13856052 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search"DiodesZetex" products on our website by using Enrgtech's Unique Manufacturing Part Number DMG3402L-7.
Yes. You can also search DMG3402L-7 on website for other similar products.
Yes. We ship DMG3402L-7 Internationally to many countries around the world.
