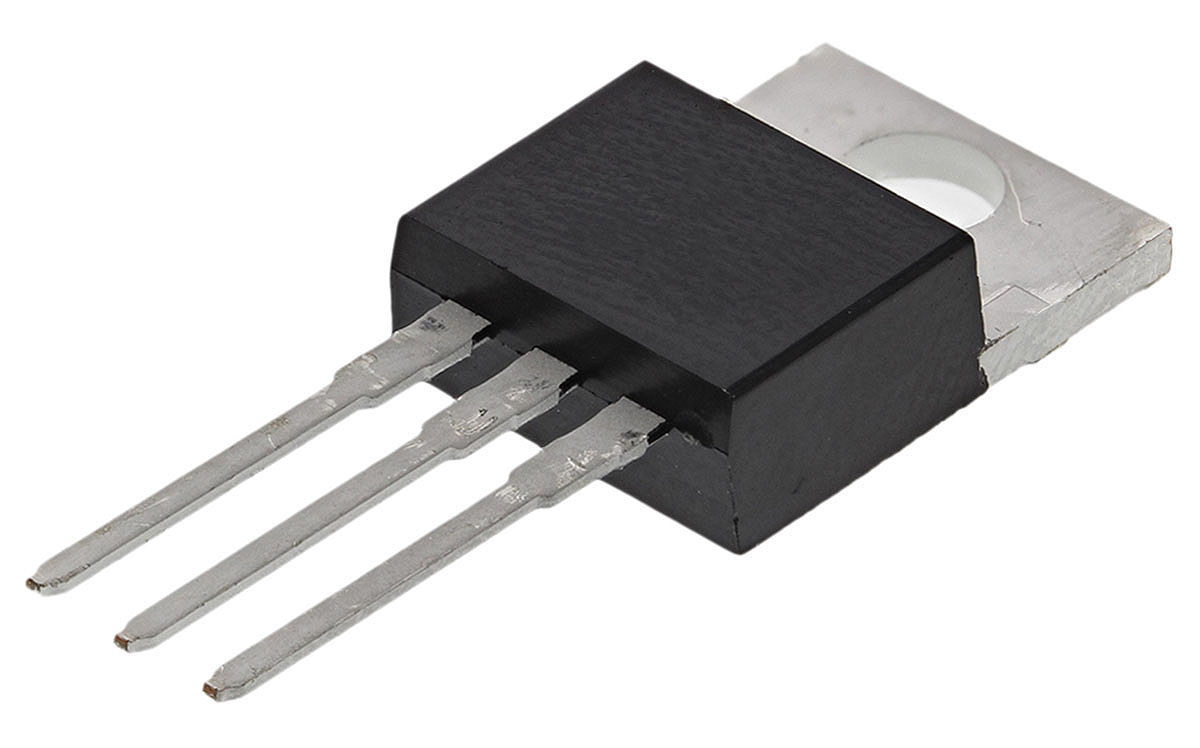

Vishay IRF9520PBF P-channel MOSFET, 6.8 A, 100 V, 3-Pin TO-220AB

IRF9520PBF Vishay P-channel MOSFET, 6.8 A, 100 V, 3-Pin TO-220AB
IRF9520PBF
Vishay

Product Information

Maximum Drain Source Voltage:
100 V
Typical Gate Charge @ Vgs:
18 nC @ 10 V
Mounting Type:
Through Hole
Channel Mode:
Enhancement
Maximum Power Dissipation:
60 W
Maximum Gate Source Voltage:
-20 V, +20 V
Channel Type:
P
Width:
4.7mm
Length:
10.41mm
Minimum Gate Threshold Voltage:
2V
Package Type:
TO-220AB
Number of Elements per Chip:
1
Minimum Operating Temperature:
-55 °C
Maximum Continuous Drain Current:
6.8 A
Transistor Material:
Si
Maximum Drain Source Resistance:
600 mΩ
Height:
9.01mm
Maximum Operating Temperature:
+175 °C
Pin Count:
3
Transistor Configuration:
Single
Checking for live stock

This is P-channel MOSFET 6.8 A 100 V 3-Pin TO-220AB manufactured by Vishay. The manufacturer part number is IRF9520PBF. The product is available in through hole configuration. The product is available in [Cannel Type] channel. Furthermore, the product is 4.7mm wide. Its accurate length is 10.41mm. Whereas, the minimum operating temperature of the product is -55 °c. In addition, the height is 9.01mm. It has a maximum operating temperature of +175 °c.
