Maximum Drain Source Voltage:
30 V
Typical Gate Charge @ Vgs:
15 nC @ 4.5 V, 32 nC @ 10 V
Mounting Type:
Surface Mount
Channel Mode:
Enhancement
Maximum Power Dissipation:
2.5 W
Maximum Gate Source Voltage:
-20 V, +20 V
Height:
1.5mm
Width:
4mm
Length:
5mm
Minimum Gate Threshold Voltage:
1V

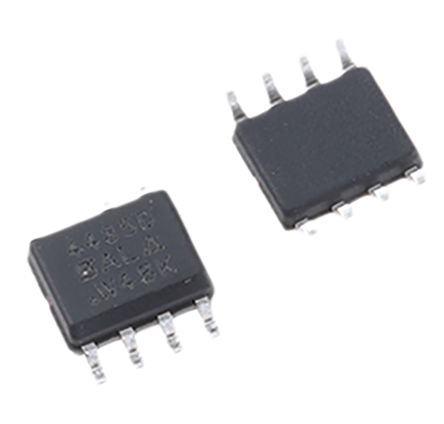

Package Type:
SOIC
Number of Elements per Chip:
1
Minimum Operating Temperature:
-55 °C
Maximum Continuous Drain Current:
8.1 A
Transistor Material:
Si
Maximum Drain Source Resistance:
24 mΩ
Channel Type:
P
Maximum Operating Temperature:
+150 °C
Pin Count:
8
Transistor Configuration:
Single
