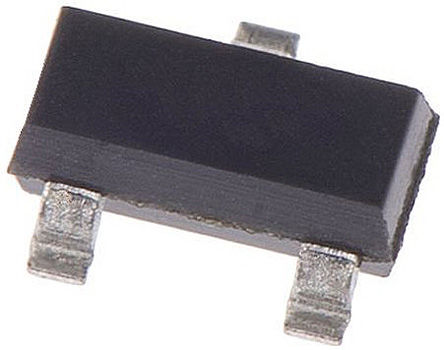

Vishay SQ2301ES-T1-GE3 P-channel MOSFET, 2.2 A, 20 V SQ Rugged, 3-Pin SOT-23

SQ2301ES-T1-GE3 Vishay P-channel MOSFET, 2.2 A, 20 V SQ Rugged, 3-Pin SOT-23
Vishay

Product Information

Maximum Continuous Drain Current:
2.2 A
Transistor Material:
Si
Width:
1.4mm
Transistor Configuration:
Single
Maximum Drain Source Voltage:
20 V
Package Type:
SOT-23
Number of Elements per Chip:
1
Minimum Gate Threshold Voltage:
0.45V
Maximum Operating Temperature:
+175 °C
Typical Gate Charge @ Vgs:
5 nC @ 4.5 V
Channel Type:
P
Length:
3.04mm
Pin Count:
3
Channel Mode:
Enhancement
Mounting Type:
Surface Mount
Maximum Power Dissipation:
3 W
Series:
SQ Rugged
Maximum Gate Source Voltage:
-8 V, +8 V
Height:
1.02mm
Minimum Operating Temperature:
-55 °C
Maximum Drain Source Resistance:
180 mΩ
RoHs Compliant
Checking for live stock

This is P-channel MOSFET 2.2 A 20 V SQ Rugged 3-Pin SOT-23 manufactured by Vishay. The manufacturer part number is SQ2301ES-T1-GE3. Furthermore, the product is 1.4mm wide. It has a maximum operating temperature of +175 °c. The product is available in [Cannel Type] channel. Its accurate length is 3.04mm. The product is available in surface mount configuration. The product sq rugged, is a highly preferred choice for users. In addition, the height is 1.02mm. Whereas, the minimum operating temperature of the product is -55 °c.

pdf icon
SQ2301ES, Automotive P-Channel 20V (D-S) 175degC MOSFET(Technical Reference)
