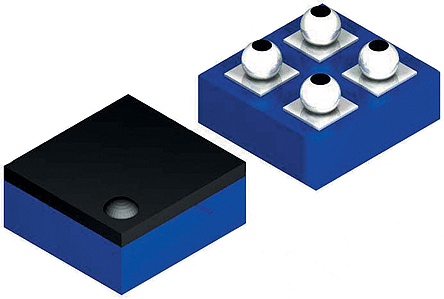

Diodes Inc DMN2023UCB4-7 Dual N-channel MOSFET, 6 A, 24 V, 4-Pin X1-WLB1818

DMN2023UCB4-7 Diodes Inc Dual N-channel MOSFET, 6 A, 24 V, 4-Pin X1-WLB1818
DiodesZetex

Product Information

Maximum Continuous Drain Current:
6 A
Transistor Material:
Si
Width:
1.8mm
Transistor Configuration:
Common Drain
Maximum Drain Source Voltage:
24 V
Maximum Gate Threshold Voltage:
1.3V
Package Type:
X1-WLB1818
Number of Elements per Chip:
2
Minimum Gate Threshold Voltage:
0.5V
Maximum Operating Temperature:
+150 °C
Typical Gate Charge @ Vgs:
29 nC @ 4.5 V
Channel Type:
N
Length:
1.8mm
Pin Count:
4
Channel Mode:
Enhancement
Mounting Type:
Surface Mount
Maximum Power Dissipation:
1.45 W
Maximum Gate Source Voltage:
-12 V, +12 V
Height:
0.24mm
Minimum Operating Temperature:
-55 °C
Forward Diode Voltage:
1V
Maximum Drain Source Resistance:
40 mΩ
RoHs Compliant
Checking for live stock

This is Diodes Inc Dual N-channel MOSFET 6 A 24 V 4-Pin X1-WLB1818 manufactured by DiodesZetex. The manufacturer part number is DMN2023UCB4-7. Furthermore, the product is 1.8mm wide. It has a maximum operating temperature of +150 °c. The product is available in [Cannel Type] channel. Its accurate length is 1.8mm. The product is available in surface mount configuration. In addition, the height is 0.24mm. Whereas, the minimum operating temperature of the product is -55 °c.

pdf icon
Datasheet(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)
pdf icon
DMN2023UCB4, N-Channel Enhancement Mode Field MOSFET(Technical Reference)

Reviews

  • Be the first to review.

FAQs

Yes. You can also search DMN2023UCB4-7 on website for other similar products.
We accept all major payment methods for all products including ET14108439. Please check your shopping cart at the time of order.
You can order DiodesZetex brand products with DMN2023UCB4-7 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in MOSFETs category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Diodes Inc DMN2023UCB4-7 Dual N-channel MOSFET, 6 A, 24 V, 4-Pin X1-WLB1818. You can also check on our website or by contacting our customer support team for further order details on Diodes Inc DMN2023UCB4-7 Dual N-channel MOSFET, 6 A, 24 V, 4-Pin X1-WLB1818.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET14108439 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search"DiodesZetex" products on our website by using Enrgtech's Unique Manufacturing Part Number DMN2023UCB4-7.
Yes. You can also search DMN2023UCB4-7 on website for other similar products.
Yes. We ship DMN2023UCB4-7 Internationally to many countries around the world.
