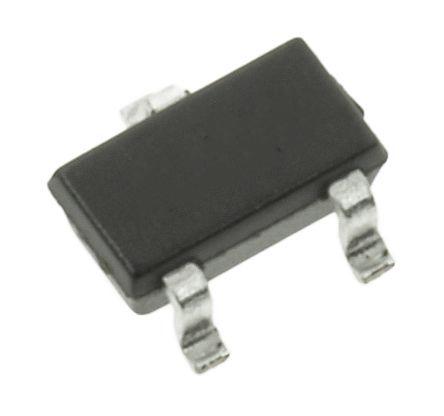

ROHM RHK005N03T146 N-channel MOSFET, 500 mA, 30 V, 3-Pin SMT

RHK005N03T146 ROHM N-channel MOSFET, 500 mA, 30 V, 3-Pin SMT
ROHM

Product Information

Maximum Continuous Drain Current:
500 mA
Width:
1.8mm
Automotive Standard:
AEC-Q101
Transistor Configuration:
Single
Maximum Drain Source Voltage:
30 V
Maximum Gate Threshold Voltage:
2.5V
Package Type:
SC-59
Number of Elements per Chip:
1
Minimum Gate Threshold Voltage:
1V
Maximum Operating Temperature:
+150 °C
Channel Type:
N
Length:
3mm
Pin Count:
3
Channel Mode:
Enhancement
Mounting Type:
Surface Mount
Maximum Power Dissipation:
200 mW
Maximum Gate Source Voltage:
±20 V
Height:
1.2mm
Minimum Operating Temperature:
-55 °C
Forward Diode Voltage:
1.2V
Maximum Drain Source Resistance:
550 mΩ
RoHs Compliant
Checking for live stock

This is N-channel MOSFET 500 mA 30 V 3-Pin SMT manufactured by ROHM. The manufacturer part number is RHK005N03T146. Furthermore, the product is 1.8mm wide. It has a maximum operating temperature of +150 °c. The product is available in [Cannel Type] channel. Its accurate length is 3mm. The product is available in surface mount configuration. In addition, the height is 1.2mm. Whereas, the minimum operating temperature of the product is -55 °c.

pdf icon
Datasheet(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)

Reviews

  • Be the first to review.

FAQs

Yes. You can also search RHK005N03T146 on website for other similar products.
We accept all major payment methods for all products including ET14128598. Please check your shopping cart at the time of order.
You can order ROHM brand products with RHK005N03T146 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in MOSFETs category are shipped in lowest possible time.
You will get a confirmation email regarding your order of ROHM RHK005N03T146 N-channel MOSFET, 500 mA, 30 V, 3-Pin SMT. You can also check on our website or by contacting our customer support team for further order details on ROHM RHK005N03T146 N-channel MOSFET, 500 mA, 30 V, 3-Pin SMT.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET14128598 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search"ROHM" products on our website by using Enrgtech's Unique Manufacturing Part Number RHK005N03T146.
Yes. You can also search RHK005N03T146 on website for other similar products.
Yes. We ship RHK005N03T146 Internationally to many countries around the world.
