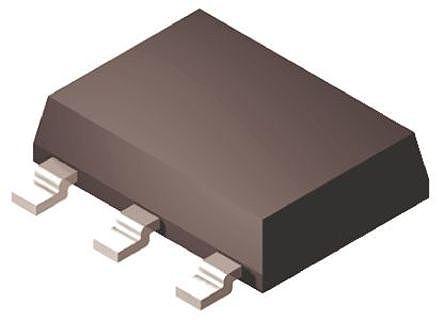

Diodes Inc ZVNL120G N-channel MOSFET, 320 mA, 200 V, 3+Tab-Pin SOT-223

ZVNL120GTA Diodes Inc ZVNL120G N-channel MOSFET, 320 mA, 200 V, 3+Tab-Pin SOT-223
DiodesZetex

Product Information

Maximum Drain Source Voltage:
200 V
Mounting Type:
Surface Mount
Channel Mode:
Enhancement
Maximum Power Dissipation:
2 W
Maximum Gate Source Voltage:
-20 V, +20 V
Maximum Gate Threshold Voltage:
1.5V
Height:
1.65mm
Width:
3.55mm
Length:
6.55mm
Maximum Drain Source Resistance:
10 Ω
Package Type:
SOT-223
Number of Elements per Chip:
1
Minimum Operating Temperature:
-55 °C
Maximum Continuous Drain Current:
320 mA
Transistor Material:
Si
Channel Type:
N
Maximum Operating Temperature:
+150 °C
Pin Count:
3 + Tab
Transistor Configuration:
Single
RoHs Compliant
Checking for live stock

This is Diodes Inc ZVNL120G N-channel MOSFET 320 mA 200 V 3+Tab-Pin SOT-223 manufactured by DiodesZetex. The manufacturer part number is ZVNL120GTA. The product is available in surface mount configuration. In addition, the height is 1.65mm. Furthermore, the product is 3.55mm wide. Its accurate length is 6.55mm. Whereas, the minimum operating temperature of the product is -55 °c. The product is available in [Cannel Type] channel. It has a maximum operating temperature of +150 °c.

pdf icon
ZVNL120G, N-Channel Enhancement Mode Low Threshold Vertical DMOS FET in SOT223(Technical Reference)
