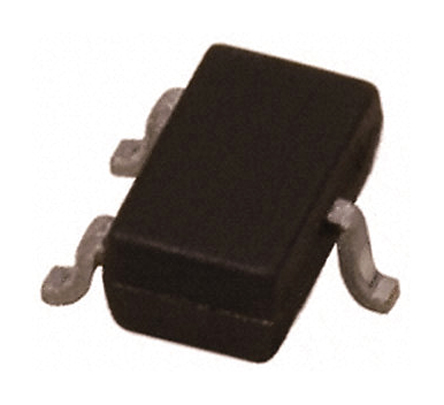

Vishay SI2325DS-T1-E3 P-channel MOSFET, 530 mA, 150 V, 3-Pin SOT-23

SI2325DS-T1-E3 Vishay P-channel MOSFET, 530 mA, 150 V, 3-Pin SOT-23
Vishay

Product Information

Maximum Drain Source Voltage:
150 V
Typical Gate Charge @ Vgs:
7.7 nC @ 10 V
Mounting Type:
Surface Mount
Channel Mode:
Enhancement
Maximum Power Dissipation:
750 mW
Maximum Gate Source Voltage:
-20 V, +20 V
Height:
1.02mm
Width:
1.4mm
Length:
3.04mm
Minimum Gate Threshold Voltage:
2.5V
Package Type:
SOT-23
Number of Elements per Chip:
1
Minimum Operating Temperature:
-55 °C
Maximum Continuous Drain Current:
530 mA
Transistor Material:
Si
Maximum Drain Source Resistance:
1.2 Ω
Channel Type:
P
Maximum Operating Temperature:
+150 °C
Pin Count:
3
Transistor Configuration:
Single
RoHs Compliant
Checking for live stock

This is P-channel MOSFET 530 mA 150 V 3-Pin SOT-23 manufactured by Vishay. The manufacturer part number is SI2325DS-T1-E3. The product is available in surface mount configuration. In addition, the height is 1.02mm. Furthermore, the product is 1.4mm wide. Its accurate length is 3.04mm. Whereas, the minimum operating temperature of the product is -55 °c. The product is available in [Cannel Type] channel. It has a maximum operating temperature of +150 °c.

pdf icon
Datasheet(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)

Reviews

  • Be the first to review.

FAQs

Yes. You can also search SI2325DS-T1-E3 on website for other similar products.
We accept all major payment methods for all products including ET16723650. Please check your shopping cart at the time of order.
You can order Vishay brand products with SI2325DS-T1-E3 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in MOSFETs category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Vishay SI2325DS-T1-E3 P-channel MOSFET, 530 mA, 150 V, 3-Pin SOT-23. You can also check on our website or by contacting our customer support team for further order details on Vishay SI2325DS-T1-E3 P-channel MOSFET, 530 mA, 150 V, 3-Pin SOT-23.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET16723650 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search"Vishay" products on our website by using Enrgtech's Unique Manufacturing Part Number SI2325DS-T1-E3.
Yes. You can also search SI2325DS-T1-E3 on website for other similar products.
Yes. We ship SI2325DS-T1-E3 Internationally to many countries around the world.
