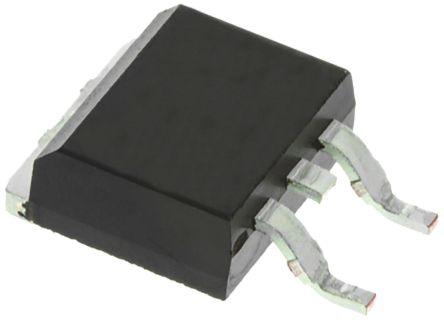

Vishay SUM50020E-GE3 N-channel MOSFET, 120 A, 60 V, 8-Pin D2PAK

SUM50020E-GE3 Vishay N-channel MOSFET, 120 A, 60 V, 8-Pin D2PAK
SUM50020E-GE3
Vishay

Product Information

Maximum Continuous Drain Current:
120 A
Width:
9.65mm
Transistor Configuration:
Single
Maximum Drain Source Voltage:
60 V
Maximum Gate Threshold Voltage:
2.5V
Package Type:
D2PAK (TO-263)
Number of Elements per Chip:
1
Minimum Gate Threshold Voltage:
1.2V
Maximum Operating Temperature:
+175 °C
Typical Gate Charge @ Vgs:
126 nC @ 10 V
Channel Type:
N
Length:
10.41mm
Pin Count:
8
Channel Mode:
Enhancement
Mounting Type:
Surface Mount
Maximum Power Dissipation:
375 W
Maximum Gate Source Voltage:
-20 V, +20 V
Height:
4.82mm
Minimum Operating Temperature:
-55 °C
Forward Diode Voltage:
1.5V
Maximum Drain Source Resistance:
2.6 mΩ
RoHs Compliant
Checking for live stock

This is N-channel MOSFET 120 A 60 V 8-Pin D2PAK manufactured by Vishay. The manufacturer part number is SUM50020E-GE3. Furthermore, the product is 9.65mm wide. It has a maximum operating temperature of +175 °c. The product is available in [Cannel Type] channel. Its accurate length is 10.41mm. The product is available in surface mount configuration. In addition, the height is 4.82mm. Whereas, the minimum operating temperature of the product is -55 °c.

pdf icon
Datasheet(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)

Reviews

  • Be the first to review.

FAQs

Yes. You can also search SUM50020E-GE3 on website for other similar products.
We accept all major payment methods for all products including ET16723858. Please check your shopping cart at the time of order.
You can order Vishay brand products with SUM50020E-GE3 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in MOSFETs category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Vishay SUM50020E-GE3 N-channel MOSFET, 120 A, 60 V, 8-Pin D2PAK. You can also check on our website or by contacting our customer support team for further order details on Vishay SUM50020E-GE3 N-channel MOSFET, 120 A, 60 V, 8-Pin D2PAK.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET16723858 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search"Vishay" products on our website by using Enrgtech's Unique Manufacturing Part Number SUM50020E-GE3.
Yes. You can also search SUM50020E-GE3 on website for other similar products.
Yes. We ship SUM50020E-GE3 Internationally to many countries around the world.
