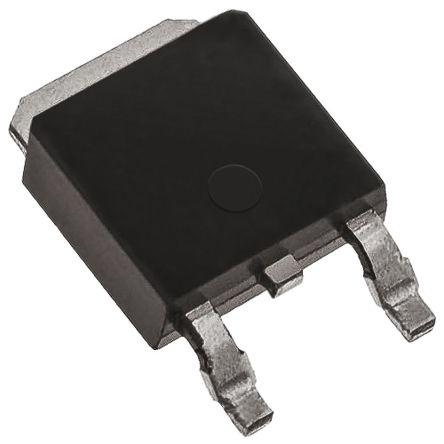

Infineon IPD320N20N3GATMA1 N-channel MOSFET, 34 A, 200 V IPD320N20N3 G, 3 + 2 Tab-Pin DPAK

IPD320N20N3GATMA1 Infineon N-channel MOSFET, 34 A, 200 V IPD320N20N3 G, 3 + 2 Tab-Pin DPAK
Infineon

Product Information

Maximum Continuous Drain Current:
34 A
Width:
7.47mm
Transistor Configuration:
Single
Maximum Drain Source Voltage:
200 V
Maximum Gate Threshold Voltage:
4V
Package Type:
TO-252
Number of Elements per Chip:
1
Minimum Gate Threshold Voltage:
2V
Maximum Operating Temperature:
+175 °C
Typical Gate Charge @ Vgs:
22 nC @ 10 V
Channel Type:
N
Length:
6.73mm
Pin Count:
3 + 2 Tab
Channel Mode:
Enhancement
Mounting Type:
Surface Mount
Maximum Power Dissipation:
136 W
Series:
IPD320N20N3 G
Maximum Gate Source Voltage:
20 V
Height:
2.41mm
Minimum Operating Temperature:
-55 °C
Forward Diode Voltage:
1.2V
Maximum Drain Source Resistance:
32 mΩ
RoHs Compliant
Checking for live stock

This is N-channel MOSFET 34 A 200 V IPD320N20N3 G 3 + 2 Tab-Pin DPAK manufactured by Infineon. The manufacturer part number is IPD320N20N3GATMA1. Furthermore, the product is 7.47mm wide. It has a maximum operating temperature of +175 °c. The product is available in [Cannel Type] channel. Its accurate length is 6.73mm. The product is available in surface mount configuration. The product ipd320n20n3 g, is a highly preferred choice for users. In addition, the height is 2.41mm. Whereas, the minimum operating temperature of the product is -55 °c.

pdf icon
Datasheet(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)
