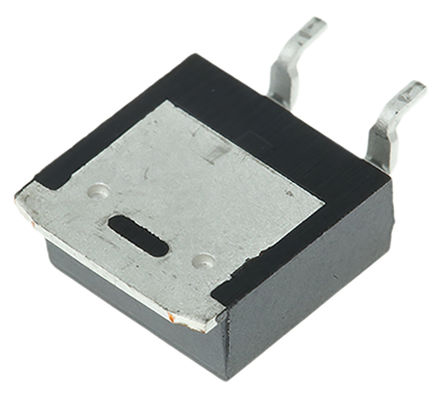

Infineon IPD80R1K4P7ATMA1 N-channel MOSFET, 4 A, 800 V CoolMOS P7, 3-Pin DPAK

IPD80R1K4P7ATMA1 Infineon N-channel MOSFET, 4 A, 800 V CoolMOS P7, 3-Pin DPAK
IPD80R1K4P7ATMA1
Infineon

Product Information

Maximum Continuous Drain Current:
4 A
Width:
6.22mm
Maximum Drain Source Voltage:
800 V
Maximum Gate Threshold Voltage:
3.5V
Package Type:
DPAK (TO-252)
Number of Elements per Chip:
1
Minimum Gate Threshold Voltage:
2.5V
Maximum Operating Temperature:
+150 °C
Typical Gate Charge @ Vgs:
10 nC @ 10 V
Channel Type:
N
Length:
6.73mm
Pin Count:
3
Channel Mode:
Enhancement
Mounting Type:
Surface Mount
Maximum Power Dissipation:
32 W
Series:
CoolMOS P7
Maximum Gate Source Voltage:
-30 V, +30 V
Height:
2.41mm
Minimum Operating Temperature:
-55 °C
Forward Diode Voltage:
0.9V
Maximum Drain Source Resistance:
1.4 Ω
RoHs Compliant
Checking for live stock

This is N-channel MOSFET 4 A 800 V CoolMOS P7 3-Pin DPAK manufactured by Infineon. The manufacturer part number is IPD80R1K4P7ATMA1. Furthermore, the product is 6.22mm wide. It has a maximum operating temperature of +150 °c. The product is available in [Cannel Type] channel. Its accurate length is 6.73mm. The product is available in surface mount configuration. The product coolmos p7, is a highly preferred choice for users. In addition, the height is 2.41mm. Whereas, the minimum operating temperature of the product is -55 °c.

pdf icon
IPD80R1K4P7, MOSFET 800V CoolMOS P7 Power Transistor(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)

Reviews

  • Be the first to review.

FAQs

Yes. You can also search IPD80R1K4P7ATMA1 on website for other similar products.
We accept all major payment methods for all products including ET16793248. Please check your shopping cart at the time of order.
You can order Infineon brand products with IPD80R1K4P7ATMA1 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in MOSFETs category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Infineon IPD80R1K4P7ATMA1 N-channel MOSFET, 4 A, 800 V CoolMOS P7, 3-Pin DPAK. You can also check on our website or by contacting our customer support team for further order details on Infineon IPD80R1K4P7ATMA1 N-channel MOSFET, 4 A, 800 V CoolMOS P7, 3-Pin DPAK.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET16793248 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search"Infineon" products on our website by using Enrgtech's Unique Manufacturing Part Number IPD80R1K4P7ATMA1.
Yes. You can also search IPD80R1K4P7ATMA1 on website for other similar products.
Yes. We ship IPD80R1K4P7ATMA1 Internationally to many countries around the world.
