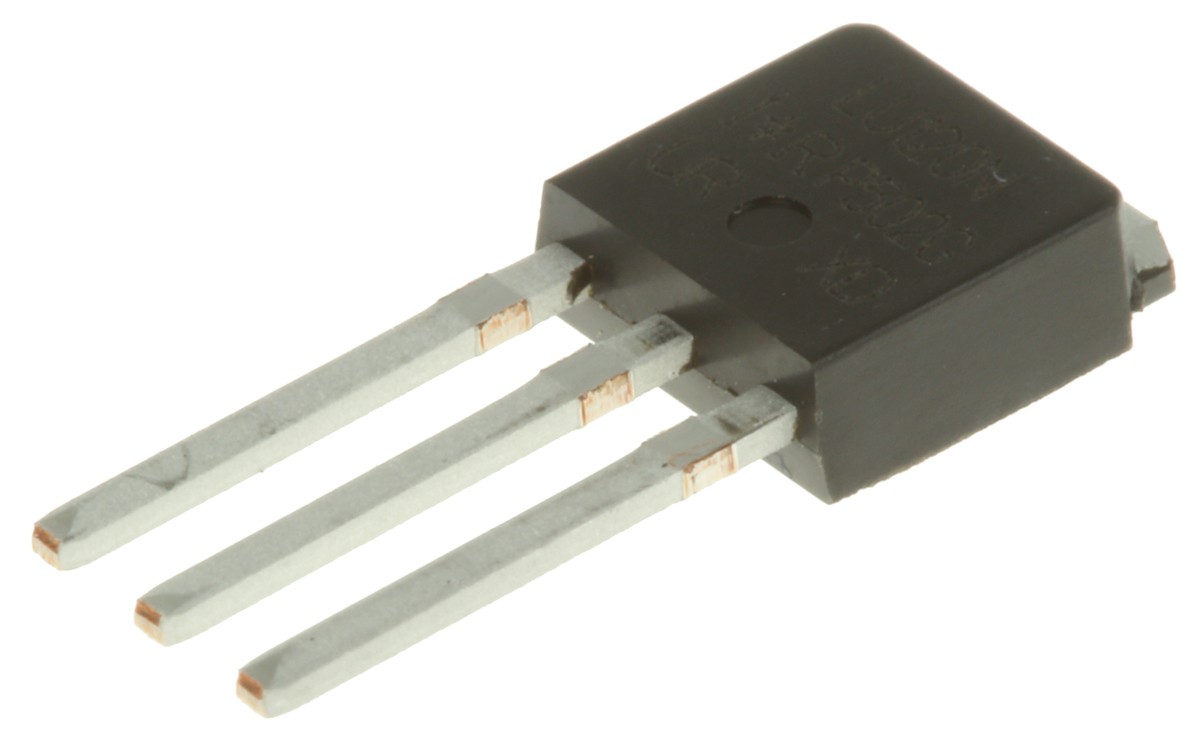

Infineon IRLU120NPBF N-channel MOSFET, 10 A, 100 V HEXFET, 3-Pin IPAK

IRLU120NPBF Infineon N-channel MOSFET, 10 A, 100 V HEXFET, 3-Pin IPAK
Infineon

Product Information

Maximum Continuous Drain Current:
10 A
Transistor Material:
Si
Width:
2.3mm
Transistor Configuration:
Single
Maximum Drain Source Voltage:
100 V
Maximum Gate Threshold Voltage:
2V
Package Type:
IPAK (TO-251)
Number of Elements per Chip:
1
Minimum Gate Threshold Voltage:
1V
Maximum Operating Temperature:
+175 °C
Typical Gate Charge @ Vgs:
20 nC @ 5 V
Channel Type:
N
Length:
6.6mm
Pin Count:
3
Channel Mode:
Enhancement
Mounting Type:
Through Hole
Maximum Power Dissipation:
48 W
Series:
HEXFET
Maximum Gate Source Voltage:
-16 V, +16 V
Height:
6.1mm
Minimum Operating Temperature:
-55 °C
Maximum Drain Source Resistance:
185 mΩ
RoHs Compliant
Checking for live stock

This is N-channel MOSFET 10 A 100 V HEXFET 3-Pin IPAK manufactured by Infineon. The manufacturer part number is IRLU120NPBF. Furthermore, the product is 2.3mm wide. It has a maximum operating temperature of +175 °c. The product is available in [Cannel Type] channel. Its accurate length is 6.6mm. The product is available in through hole configuration. The product hexfet, is a highly preferred choice for users. In addition, the height is 6.1mm. Whereas, the minimum operating temperature of the product is -55 °c.

pdf icon
IRLR120NPbF / IRLU120NPbF, HEXFET Power MOSFET Data sheet(July 2014)(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)
