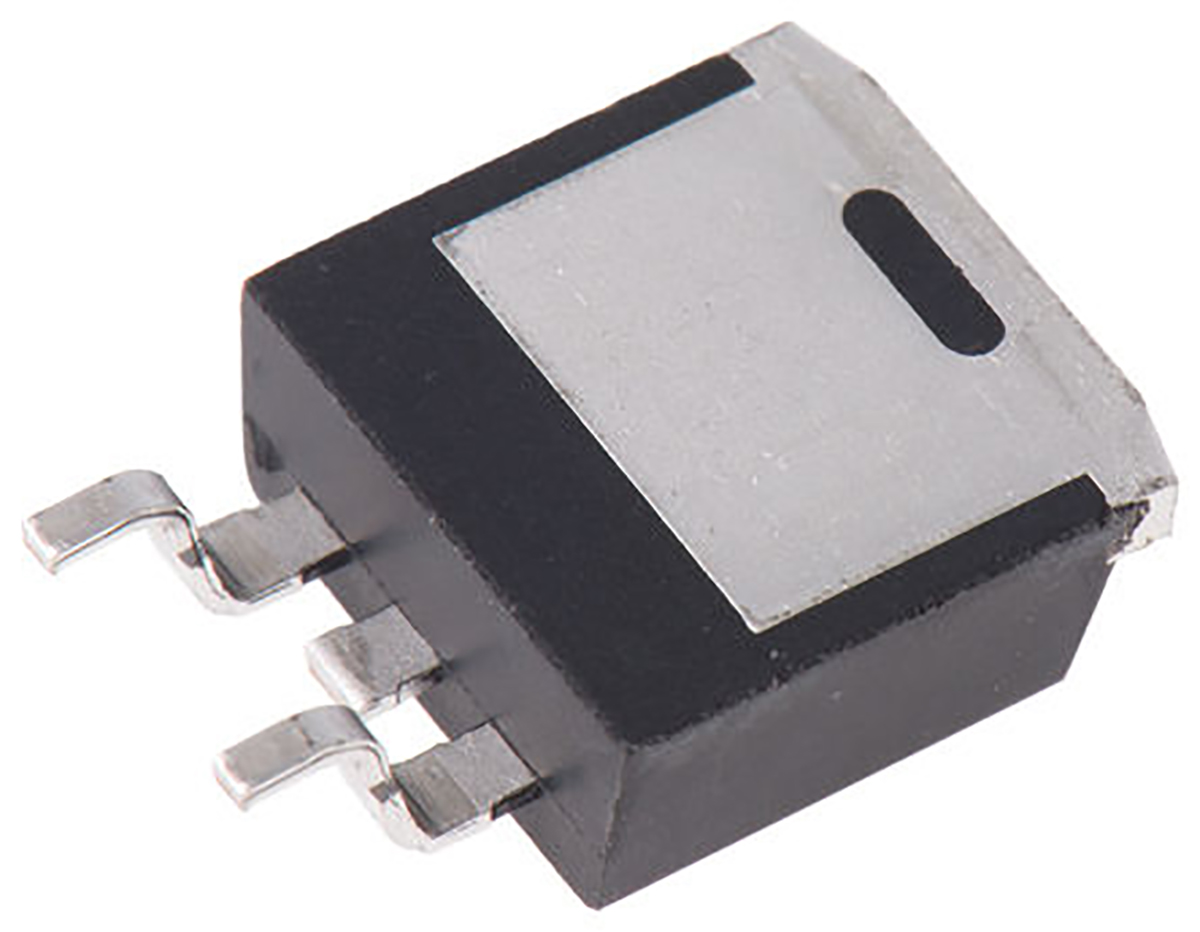

Nexperia PSMN4R6-60BS,118 N-channel MOSFET, 100 A, 60 V, 3-Pin D2PAK

PSMN4R6-60BS-118 Nexperia PSMN4R6-60BS,118 N-channel MOSFET, 100 A, 60 V, 3-Pin D2PAK
PSMN4R6-60BS,118
PSMN4R6-60BS-118 Nexperia PSMN4R6-60BS,118 N-channel MOSFET, 100 A, 60 V, 3-Pin D2PAK
Nexperia

Product Information

Maximum Continuous Drain Current:
100 A
Transistor Material:
Si
Width:
11mm
Transistor Configuration:
Single
Maximum Drain Source Voltage:
60 V
Maximum Gate Threshold Voltage:
4V
Package Type:
D2PAK (TO-263)
Number of Elements per Chip:
1
Minimum Gate Threshold Voltage:
2V
Maximum Operating Temperature:
+175 °C
Typical Gate Charge @ Vgs:
70.8 nC @ 10 V
Channel Type:
N
Length:
10.3mm
Pin Count:
3
Channel Mode:
Enhancement
Mounting Type:
Surface Mount
Maximum Power Dissipation:
211 W
Maximum Gate Source Voltage:
-20 V, +20 V
Height:
4.5mm
Minimum Operating Temperature:
-55 °C
Maximum Drain Source Resistance:
7 mΩ
RoHs Compliant
Checking for live stock

This is N-channel MOSFET 100 A 60 V 3-Pin D2PAK manufactured by Nexperia. The manufacturer part number is PSMN4R6-60BS,118. Furthermore, the product is 11mm wide. It has a maximum operating temperature of +175 °c. The product is available in [Cannel Type] channel. Its accurate length is 10.3mm. The product is available in surface mount configuration. In addition, the height is 4.5mm. Whereas, the minimum operating temperature of the product is -55 °c.

pdf icon
ESD Control Selection Guide V1(Technical Reference)
pdf icon
PSMN4R6-60BS, N-channel 60V, 4.4mΩ standard level MOSFET in D2PAK Data Sheet(Technical Reference)
