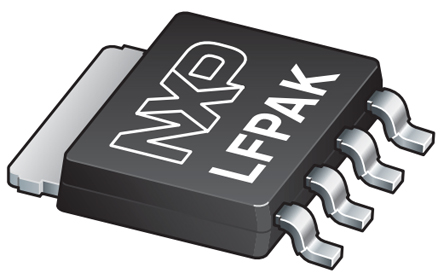

Nexperia PSMN1R2-30YLC,115 N-channel MOSFET, 100 A, 30 V, 4-Pin SOT-669

PSMN1R2-30YLC-115 Nexperia PSMN1R2-30YLC,115 N-channel MOSFET, 100 A, 30 V, 4-Pin SOT-669
PSMN1R2-30YLC-115 Nexperia PSMN1R2-30YLC,115 N-channel MOSFET, 100 A, 30 V, 4-Pin SOT-669
Nexperia

Product Information

Maximum Continuous Drain Current:
100 A
Transistor Material:
Si
Width:
4.1mm
Transistor Configuration:
Single
Maximum Drain Source Voltage:
30 V
Maximum Gate Threshold Voltage:
1.95V
Package Type:
LFPAK, SOT-669
Number of Elements per Chip:
1
Minimum Gate Threshold Voltage:
1.05V
Maximum Operating Temperature:
+175 °C
Typical Gate Charge @ Vgs:
78 nC @ 10 V
Channel Type:
N
Length:
5mm
Pin Count:
4
Channel Mode:
Enhancement
Mounting Type:
Surface Mount
Maximum Power Dissipation:
215 W
Maximum Gate Source Voltage:
-20 V, +20 V
Height:
1.1mm
Minimum Operating Temperature:
-55 °C
Maximum Drain Source Resistance:
1.65 mΩ
RoHs Compliant
Checking for live stock

This is N-channel MOSFET 100 A 30 V 4-Pin SOT-669 manufactured by Nexperia. The manufacturer part number is PSMN1R2-30YLC,115. Furthermore, the product is 4.1mm wide. It has a maximum operating temperature of +175 °c. The product is available in [Cannel Type] channel. Its accurate length is 5mm. The product is available in surface mount configuration. In addition, the height is 1.1mm. Whereas, the minimum operating temperature of the product is -55 °c.
