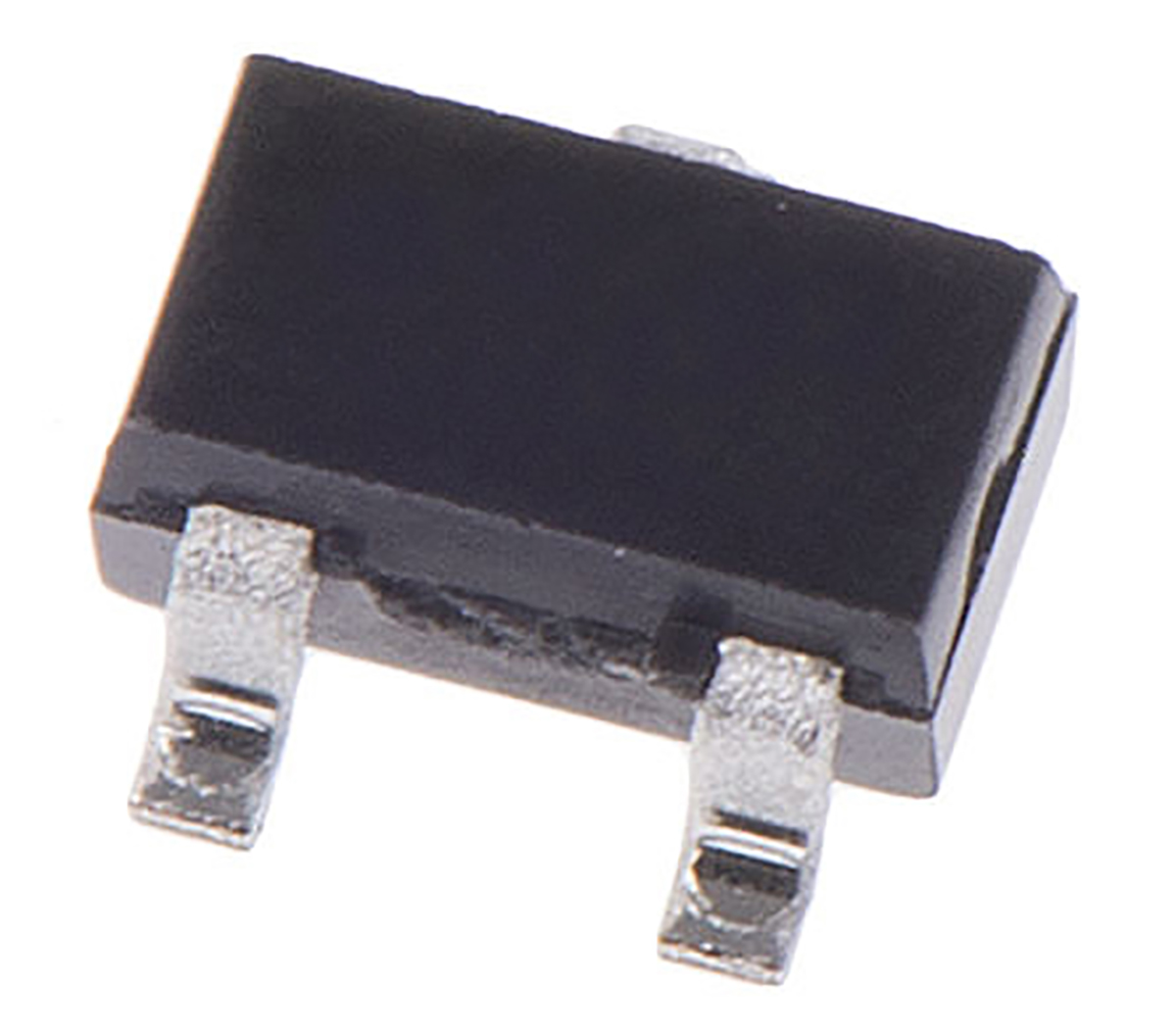

Nexperia 2N7002PW,115 N-channel MOSFET, 310 mA, 60 V, 3-Pin SOT-323

2N7002PW-115 Nexperia 2N7002PW,115 N-channel MOSFET, 310 mA, 60 V, 3-Pin SOT-323
2N7002PW,115
Nexperia

Product Information

Maximum Continuous Drain Current:
310 mA
Transistor Material:
Si
Width:
1.35mm
Transistor Configuration:
Single
Maximum Drain Source Voltage:
60 V
Maximum Gate Threshold Voltage:
2.4V
Package Type:
SOT-323
Number of Elements per Chip:
1
Minimum Gate Threshold Voltage:
1.1V
Maximum Operating Temperature:
+150 °C
Typical Gate Charge @ Vgs:
0.6 nC @ 2.5 V
Channel Type:
N
Length:
2.2mm
Pin Count:
3
Channel Mode:
Enhancement
Mounting Type:
Surface Mount
Maximum Power Dissipation:
260 mW
Maximum Gate Source Voltage:
-20 V, +20 V
Height:
1mm
Minimum Operating Temperature:
-55 °C
Maximum Drain Source Resistance:
1.6 Ω
RoHs Compliant
Checking for live stock

This is N-channel MOSFET 310 mA 60 V 3-Pin SOT-323 manufactured by Nexperia. The manufacturer part number is 2N7002PW,115. Furthermore, the product is 1.35mm wide. It has a maximum operating temperature of +150 °c. The product is available in [Cannel Type] channel. Its accurate length is 2.2mm. The product is available in surface mount configuration. In addition, the height is 1mm. Whereas, the minimum operating temperature of the product is -55 °c.

pdf icon
Datasheet(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)

Reviews

  • Be the first to review.

FAQs

Yes. You can also search 2N7002PW,115 on website for other similar products.
We accept all major payment methods for all products including ET16899980. Please check your shopping cart at the time of order.
You can order Nexperia brand products with 2N7002PW,115 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in MOSFETs category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Nexperia 2N7002PW,115 N-channel MOSFET, 310 mA, 60 V, 3-Pin SOT-323. You can also check on our website or by contacting our customer support team for further order details on Nexperia 2N7002PW,115 N-channel MOSFET, 310 mA, 60 V, 3-Pin SOT-323.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET16899980 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search"Nexperia" products on our website by using Enrgtech's Unique Manufacturing Part Number 2N7002PW,115.
Yes. You can also search 2N7002PW,115 on website for other similar products.
Yes. We ship 2N7002PW,115 Internationally to many countries around the world.
