Maximum Continuous Drain Current:
50 A
Width:
6.22mm
Transistor Configuration:
Single
Maximum Drain Source Voltage:
150 V
Maximum Gate Threshold Voltage:
4V

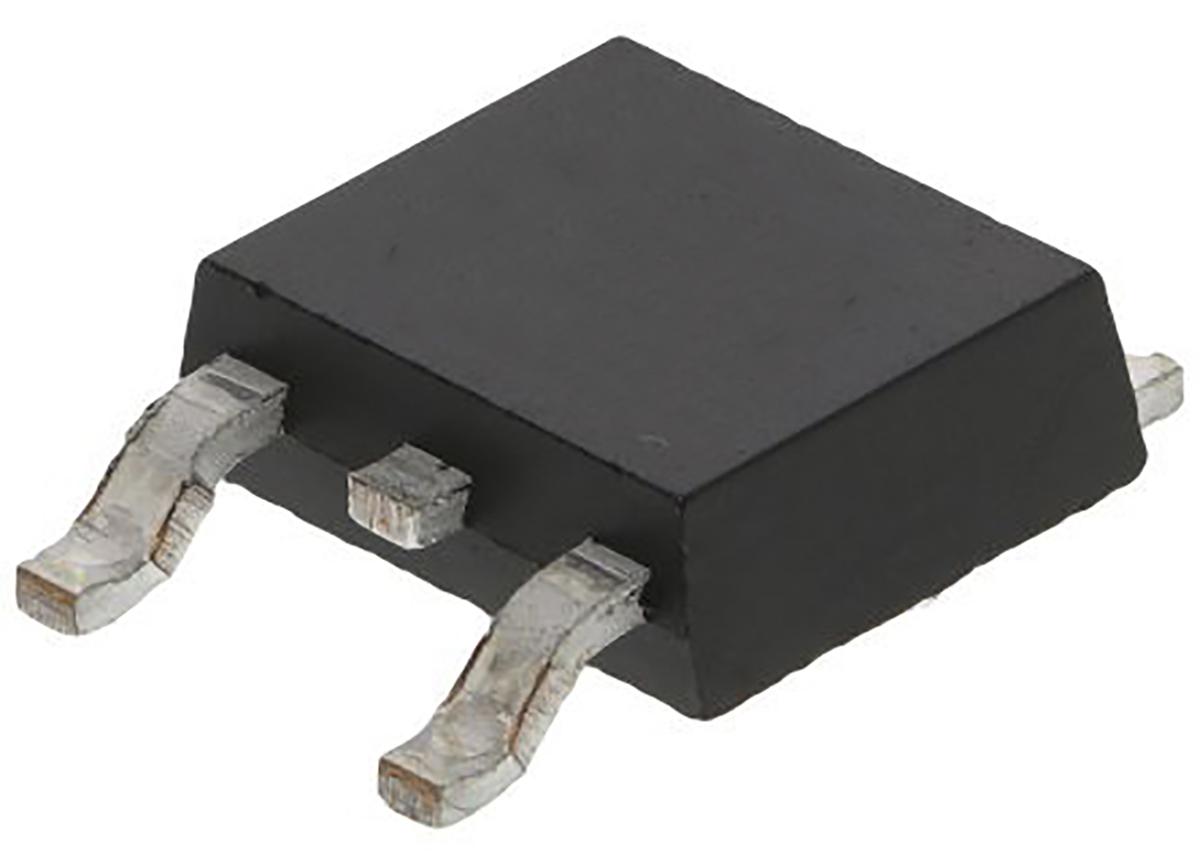

Package Type:
DPAK (TO-252)
Number of Elements per Chip:
1
Minimum Gate Threshold Voltage:
2V
Maximum Operating Temperature:
+175 °C
Typical Gate Charge @ Vgs:
28 nC @ 10 V
Channel Type:
N
Length:
6.73mm
Pin Count:
3
Channel Mode:
Enhancement
Mounting Type:
Surface Mount
Maximum Power Dissipation:
160 W
Maximum Gate Source Voltage:
±20 V
Height:
2.39mm
Minimum Operating Temperature:
-55 °C
Forward Diode Voltage:
1.25V
Maximum Drain Source Resistance:
22 mΩ
FET Feature:
-
HTSUS:
8541.29.0095
Vgs(th) (Max) @ Id:
4V @ 250µA
Operating Temperature:
-55°C ~ 175°C (TJ)
Package / Case:
TO-252-3, DPak (2 Leads + Tab), SC-63
Rds On (Max) @ Id, Vgs:
22mOhm @ 20A, 10V
Gate Charge (Qg) (Max) @ Vgs:
37 nC @ 10 V
RoHS Status:
ROHS3 Compliant
REACH Status:
REACH Unaffected
FET Type:
N-Channel
Drive Voltage (Max Rds On, Min Rds On):
10V
Package:
Tape & Reel (TR)
Drain to Source Voltage (Vdss):
150 V
Vgs (Max):
±20V
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Power Dissipation (Max):
160W (Tj)
Input Capacitance (Ciss) (Max) @ Vds:
1900 pF @ 75 V
standardLeadTime:
34 Weeks
Mounting Type:
Surface Mount
Series:
Automotive, AEC-Q101, PowerTrench®
Supplier Device Package:
TO-252AA
Current - Continuous Drain (Id) @ 25°C:
50A (Tc)
Technology:
MOSFET (Metal Oxide)
Base Product Number:
FDD86250
ECCN:
EAR99
