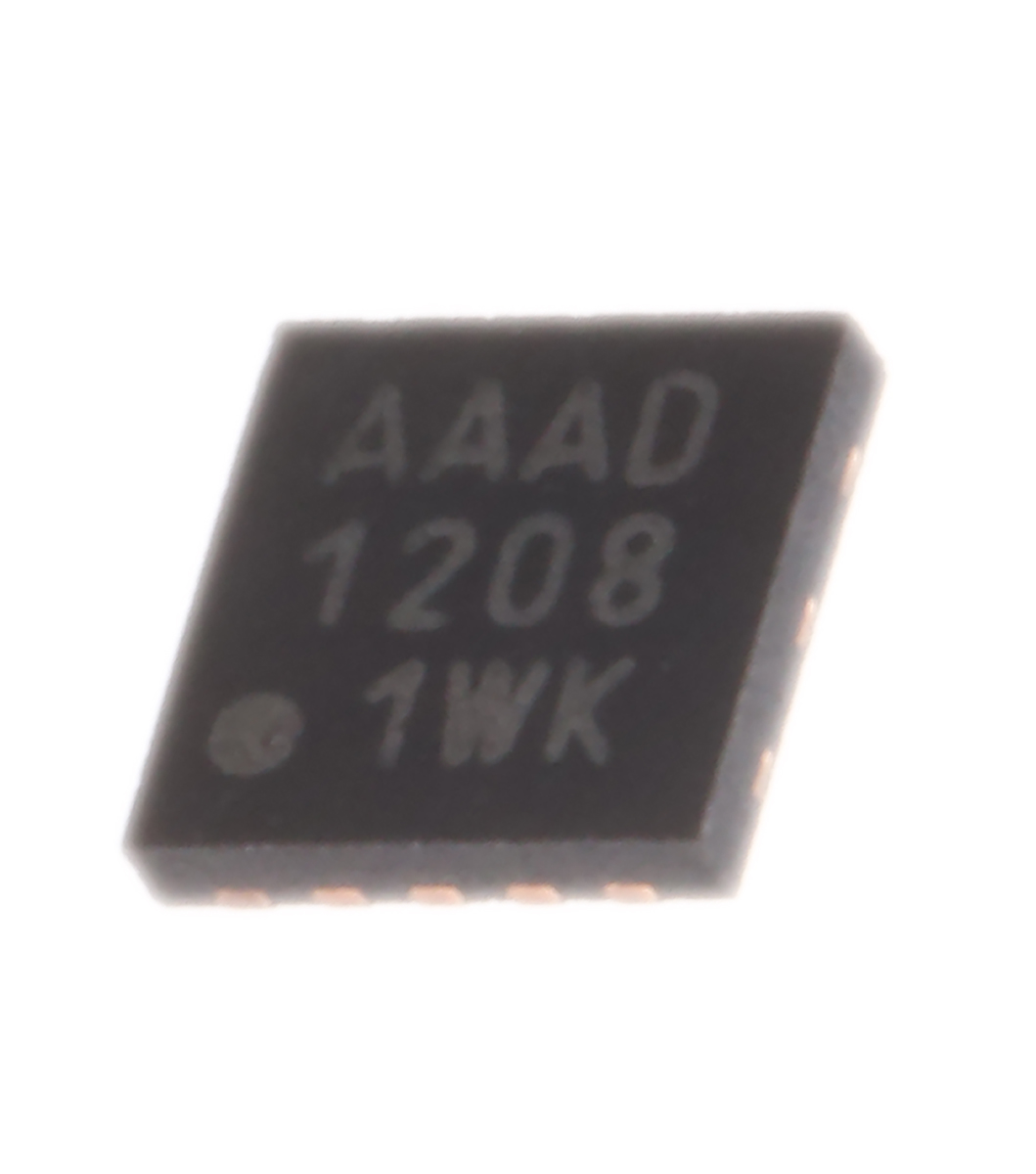

Microchip MTD6505T-E/NA, BLDC Motor Driver IC, 5 V 0.75A 10-Pin, UDFN

MTD6505T-E-NA Microchip MTD6505T-E/NA, BLDC Motor Driver IC, 5 V 0.75A 10-Pin, UDFN
MTD6505T-E-NA Microchip MTD6505T-E/NA, BLDC Motor Driver IC, 5 V 0.75A 10-Pin, UDFN
Microchip

Product Information

Dimensions:
3 x 3 x 0.5mm
Mounting Type:
Surface Mount
Minimum Operating Supply Voltage:
2 V
Maximum Collector Emitter Voltage:
5 V
Maximum IGBT Collector Current:
0.75A
Height:
0.5mm
Width:
3mm
Length:
3mm
Package Type:
UDFN
Minimum Operating Temperature:
-40 °C
Output Configuration:
3 Phase
Motor Type:
BLDC
Maximum Operating Temperature:
+125 °C
Pin Count:
10
Maximum Operating Supply Voltage:
5.5 V
RoHs Compliant
Checking for live stock

This is BLDC Motor Driver IC 5 V 0.75A 10-Pin UDFN manufactured by Microchip. The manufacturer part number is MTD6505T-E/NA. The given dimensions of the product include 3 x 3 x 0.5mm. The product is available in surface mount configuration. In addition, the height is 0.5mm. Furthermore, the product is 3mm wide. Its accurate length is 3mm. Whereas, the minimum operating temperature of the product is -40 °c. It boasts 3 phase output configuration. This high-efficiency motor is a bldc. It has a maximum operating temperature of +125 °c.
