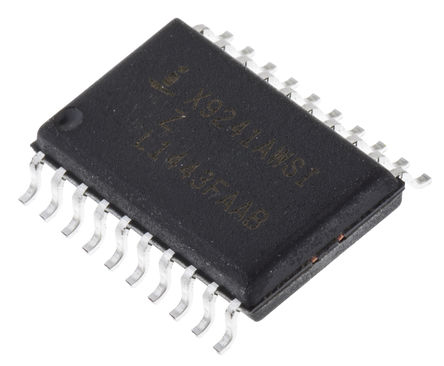

Renesas Electronics HIP4020IBZ, DC Motor Driver IC, 15 V 0.5A 20-Pin, SOIC W

HIP4020IBZ Renesas Electronics , DC Motor Driver IC, 15 V 0.5A 20-Pin, SOIC W

(0)

Product Information

Dimensions:

13 x 7.6 x 2.35mm

Mounting Type:

Surface Mount

Minimum Operating Supply Voltage:

3 V

Maximum Collector Emitter Voltage:

15 V

Maximum IGBT Collector Current:

0.5A

Height:

2.35mm

Width:

7.6mm

Length:

13mm

Package Type:

SOIC W

Minimum Operating Temperature:

-40 °C

Output Configuration:

Full Bridge

Motor Type:

Checking for live stock

This is DC Motor Driver IC 15 V 0.5A 20-Pin SOIC W manufactured by Renesas Electronics. The manufacturer part number is HIP4020IBZ. The given dimensions of the product include 13 x 7.6 x 2.35mm. The product is available in surface mount configuration. In addition, the height is 2.35mm. Furthermore, the product is 7.6mm wide. Its accurate length is 13mm. Whereas, the minimum operating temperature of the product is -40 °c. It boasts full bridge output configuration. This high-efficiency motor is a dc. It has a maximum operating temperature of +85 °c.

HIP4020, Half Amp Full Bridge Power Driver for Small 3V, 5V and 12V DC Motors(Technical Reference)

ESD Control Selection Guide V1(Technical Reference)
