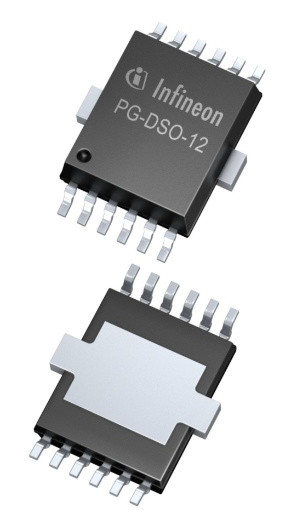

Infineon IFX9201SGAUMA1 Dual H Bridge Driver 12-Pin, DSO

IFX9201SGAUMA1 Infineon Dual H Bridge Driver 12-Pin, DSO
IFX9201SGAUMA1
IFX9201SGAUMA1 Infineon Dual H Bridge Driver 12-Pin, DSO
Infineon

Product Information

Dimensions:
7.5 x 6.4 x 2.35mm
Product Width:
6.4mm
Width:
6.4mm
Maximum Supply Voltage:
36 V
Motor Type:
DC
Minimum Operating Supply Voltage:
5 V
Product Height:
2.35mm
Package Type:
DSO
Typical Switching Frequency:
20kHz
Configuration:
H Bridge
Maximum Operating Temperature:
+125 °C
Product Length:
7.5mm
Length:
7.5mm
Pin Count:
12
Maximum Operating Supply Voltage:
36 V
Mounting Type:
Surface Mount
Series:
IFX9201SG
Height:
2.35mm
Minimum Operating Temperature:
-40 °C
Output Configuration:
Half Bridge
Maximum Output Current:
10A
RoHs Compliant
Checking for live stock

This is Dual H Bridge Driver 12-Pin DSO manufactured by Infineon. The manufacturer part number is IFX9201SGAUMA1. The given dimensions of the product include 7.5 x 6.4 x 2.35mm. Furthermore, the product is 6.4mm wide. This high-efficiency motor is a dc. The product is available in h bridge configuration. It has a maximum operating temperature of +125 °c. Its accurate length is 7.5mm. The product is available in surface mount configuration. The product ifx9201sg, is a highly preferred choice for users. In addition, the height is 2.35mm. Whereas, the minimum operating temperature of the product is -40 °c. It boasts half bridge output configuration.

pdf icon
Datasheet(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)
