Width:
42.5mm
Height:
165mm
Length:
78mm
Weight:
285g
True RMS:
Yes
Calibrated:
UKAS
Dimensions:
78 x 42.5 x 165mm
Battery Type:
9V
Display Type:
Digital
Model Number p:

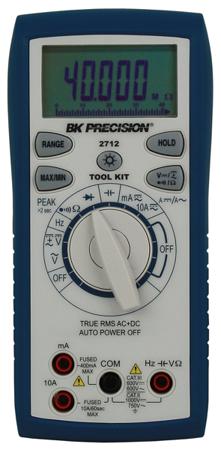

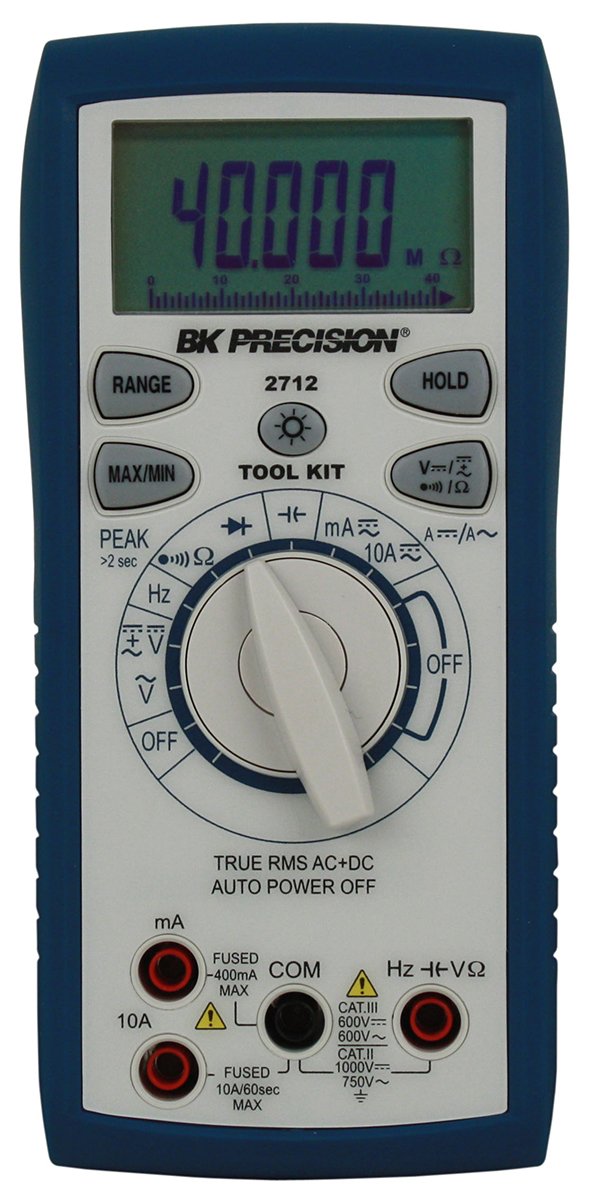

BK2712
Multimeter Type:
Handheld
Maximum Frequency:
1kHz
Functions Measured:
AC Current, AC Voltage, Capacitance, Continuity, DC Current, DC Voltage, Diode, Frequency, Resistance
Safety Category Level:
CAT II, CAT III
Safety Category Voltage:
600 V, 750 V, 1000V
Best AC Current Accuracy:
±2.5% + 30 Digits
Best AC Voltage Accuracy:
±2% + 20 Digits
Best DC Current Accuracy:
±2% + 10 Digits
Best DC Voltage Accuracy:
±0.15% + 10 Digits
Maximum Operating Temperature:
+50°C
Minimum Operating Temperature:
0°C
AC Current Measurement Resolution:
1µA ac
AC Voltage Measurement Resolution:
0.01mV ac
DC Current Measurement Resolution:
1µA dc
DC Voltage Measurement Resolution:
0.01mV dc
Resistance Measurement Resolution:
10mΩ
Capacitance Measurement Resolution:
1pF
Best Resistance Measurement Accuracy:
±1.5% + 20 Digits
Best Capacitance Measurement Accuracy:
±5% +5 Digits
Absolute Maximum AC Current Measurement:
10A ac
Absolute Maximum AC Voltage Measurement:
750V ac
Absolute Maximum DC Current Measurement:
10A dc
Absolute Maximum DC Voltage Measurement:
1000V dc
Absolute Maximum Resistance Measurement:
40MΩ
Absolute Maximum Capacitance Measurement:
40µF
