Width:
42.5mm
Height:
165mm
Length:
78mm
Weight:
285g
True RMS:
No
Calibrated:
RSCAL
Dimensions:
78 x 42.5 x 165mm
Battery Type:
9V
Display Type:
Digital
Model Number p:

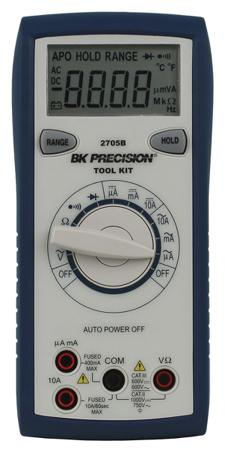

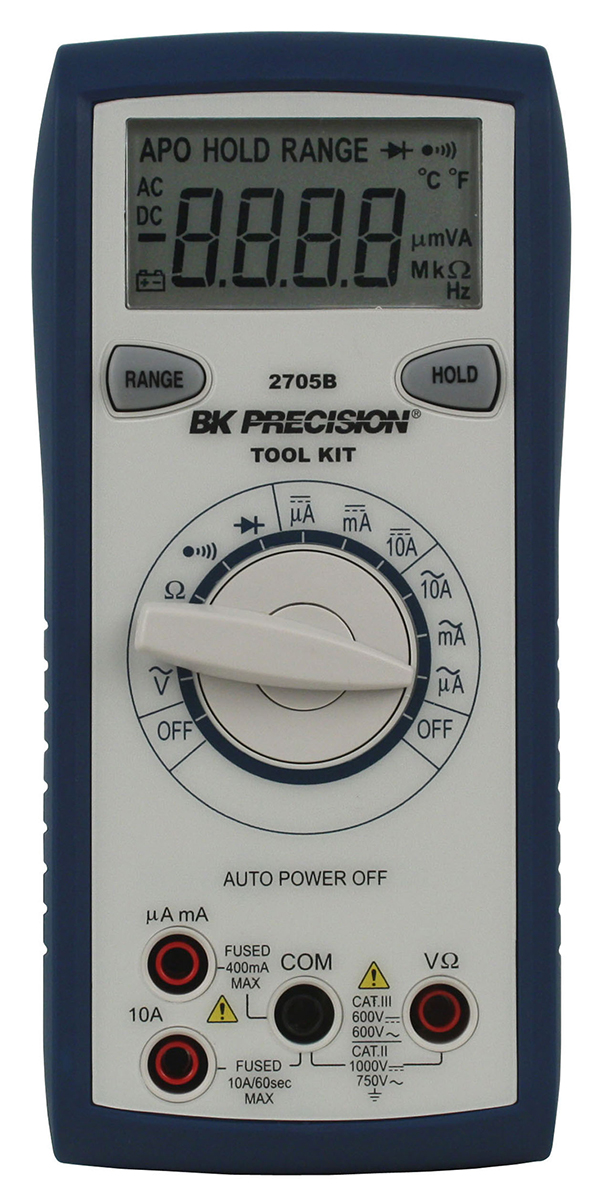

BK2705B
Multimeter Type:
Handheld
Maximum Frequency:
500Hz
Functions Measured:
AC Current, AC Voltage, Continuity, DC Current, DC Voltage, Diode, Resistance
Safety Category Level:
CAT II, CAT III
Safety Category Voltage:
600 V, 750 V, 1000V
Best AC Current Accuracy:
±3.5% + 5 Digits
Best AC Voltage Accuracy:
±2% + 5 Digits
Best DC Current Accuracy:
±3% + 3 Digits
Best DC Voltage Accuracy:
±1% + 2 Digits
Maximum Operating Temperature:
+50°C
Minimum Operating Temperature:
0°C
AC Current Measurement Resolution:
0.1µA ac
AC Voltage Measurement Resolution:
0.1mV ac
DC Current Measurement Resolution:
0.1µA dc
DC Voltage Measurement Resolution:
0.1mV dc
Resistance Measurement Resolution:
100mΩ
Best Resistance Measurement Accuracy:
±5% + 4 Digits
Absolute Maximum AC Current Measurement:
10A ac
Absolute Maximum AC Voltage Measurement:
750V ac
Absolute Maximum DC Current Measurement:
10A dc
Absolute Maximum DC Voltage Measurement:
1000V dc
Absolute Maximum Resistance Measurement:
40MΩ
