Series:
4
Input Range:
0 → 20 mA, 0/0.2 → 1 V dc, 0/1 → 5 V dc, 0/2 → 10 V dc, 4 → 20mA
Module Type:

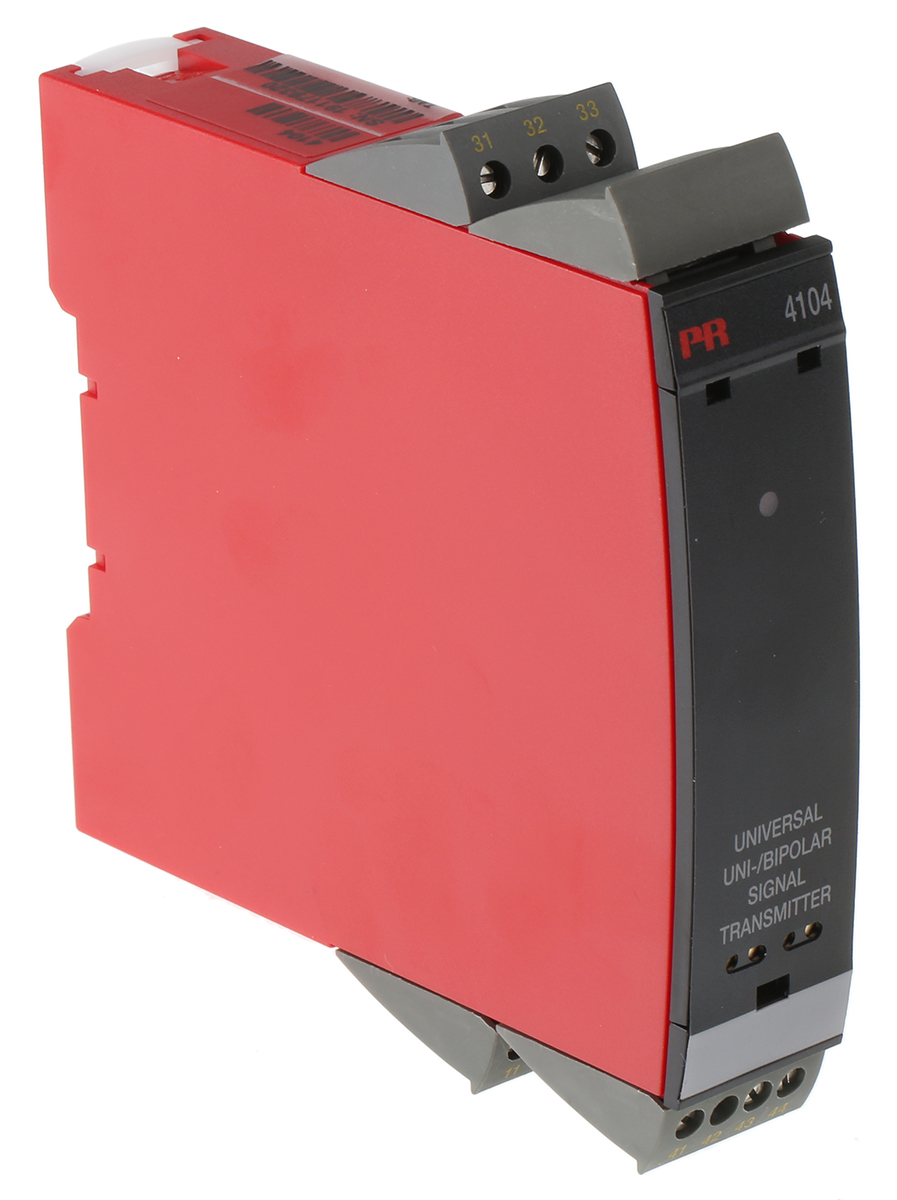

Universal Signal Converter
Termination:
Screw
Output Range:
(Active Bipolar) 0 → 20 mA, (Active Unipolar) 0 → 20 mA, (Passive 2-Wire) 0 → 20 mA, (Unipolar) 0 → 23 mA, (Bipolar) 0/0.2 → 1 V dc, 0/1 → 10 V dc, 0/1 → 5 V dc, -23 → +23 mA, (Active Bipolar) 4 → 20 mA, (Active Unipolar) 4 → 20 mA, (Passive 2-Wire) 4 → 20mA
Mounting Type:
DIN Rail Mount
Supply Voltage:
19.2 → 300 V dc, 21.6 → 253V ac
Input Signal Type:
Current, Voltage
Output Signal Type:
Current, Voltage
Operating Temperature Range:
-20 → +60°C
Maximum Operating Temperature:
+60°C
Minimum Operating Temperature:
-20°C
