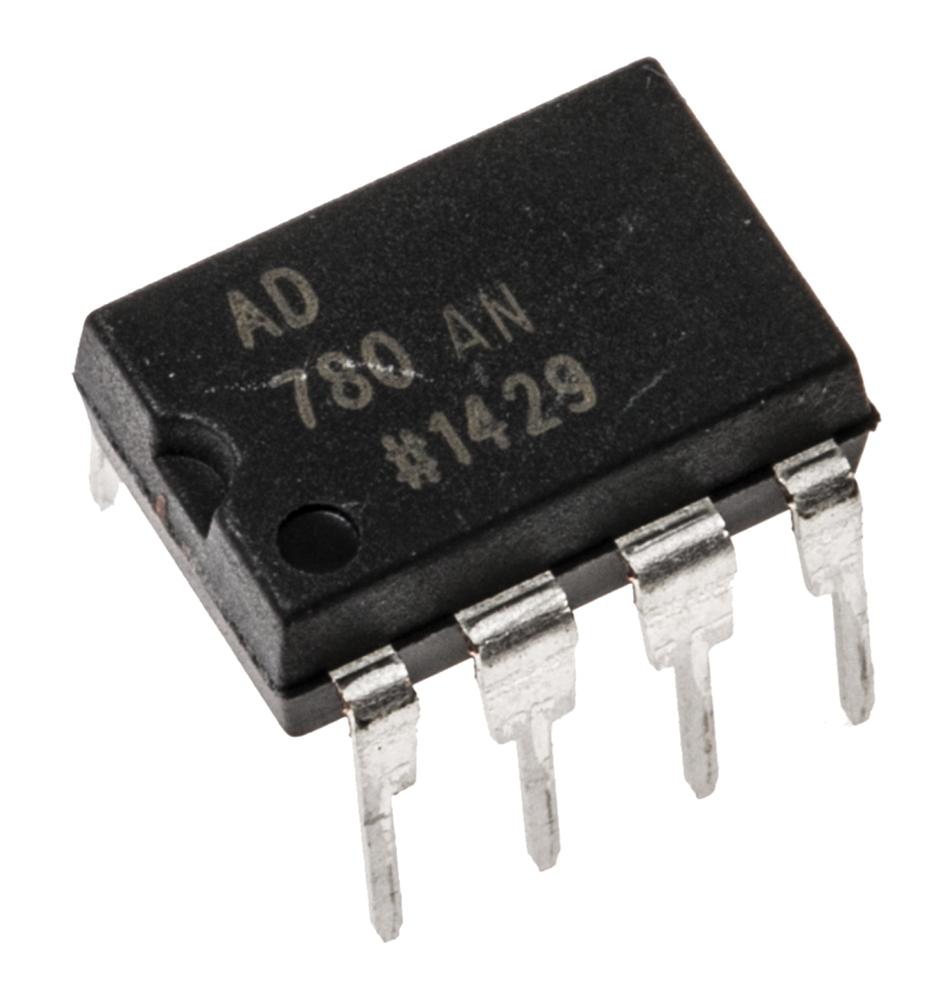

Analog Devices AD780ANZ, Adjustable Series/Shunt Voltage Reference 2.5 V, 3 V, ±0.2 %, PDIP 8-Pin

AD780ANZ Analog Devices , Adjustable Series/Shunt Voltage Reference 2.5 V, 3 V, ±0.2 %, PDIP 8-Pin
AD780ANZ
Analog Devices

Product Information

Load Regulation:
75 μV/mA
Dimensions:
9.27 x 7.24 x 3.43mm
Mounting Type:
Through Hole
Maximum Operating Temperature:
+85 °C
Line Regulation:
10 μV/V
Maximum Input Voltage:
36 V
Height:
3.43mm
Width:
7.24mm
Length:
9.27mm
Initial Accuracy:
±0.2 %
Package Type:
PDIP
Maximum Output Voltage:
2 V, 3 V
Minimum Operating Temperature:
-40 °C
Minimum Output Voltage:
2.495 V, 2.995 V
Nominal Voltage:
2.5 V, 3V
Reference Type:
Programmable
Maximum Output Current:
10mA
Pin Count:
8
Topology:
Series/Shunt
RoHs Compliant
Checking for live stock

This is Adjustable Series/Shunt Voltage Reference 2.5 V 3 V ±0.2 % PDIP 8-Pin manufactured by Analog Devices. The manufacturer part number is AD780ANZ. Load Regulation - 75 μv/ma. The given dimensions of the product include 9.27 x 7.24 x 3.43mm. The product is available in through hole configuration. It has a maximum operating temperature of +85 °c. Has a line regulation of 10 μv/v. In addition, the height is 3.43mm. Furthermore, the product is 7.24mm wide. Its accurate length is 9.27mm. Whereas, the minimum operating temperature of the product is -40 °c. The product has a reference of programmable type. Topology includes series/shunt.
