LDO Regulator,

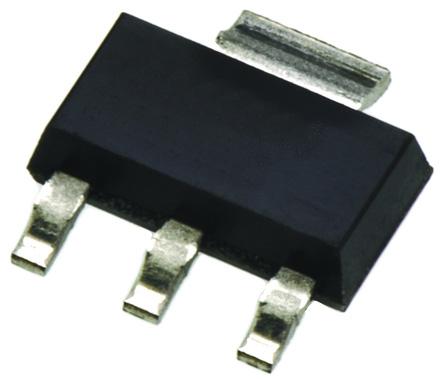

AZ1117CH-1-2TRG1 LDO Regulator,
DiodesZetex

Product Information

Polarity:
Positive
Number of Outputs:
1
Load Regulation:
15 mV
Dimensions:
6.7 x 3.7 x 1.7mm
Mounting Type:
Surface Mount
Maximum Operating Temperature:
+125 °C
Regulator Type:
Low Dropout Voltage
Output Type:
Fixed
Height:
1.7mm
Width:
3.7mm
Length:
6.7mm
Output Voltage:
1.2 V
Package Type:
SOT-223
Minimum Operating Temperature:
-20 °C
Maximum Input Voltage:
15 V
Quiescent Current:
6mA
Maximum Output Current:
300mA
Pin Count:
3+Tab
Line Regulation:
10 mV
RoHs Compliant
Checking for live stock

This is LDO Regulator manufactured by DiodesZetex. The manufacturer part number is AZ1117CH-1.2TRG1. Additionally, the product is supplied with 1 outputs. Load Regulation - 15 mv. The given dimensions of the product include 6.7 x 3.7 x 1.7mm. The product is available in surface mount configuration. It has a maximum operating temperature of +125 °c. Furthermore, it has afixed output. In addition, the height is 1.7mm. Furthermore, the product is 3.7mm wide. Its accurate length is 6.7mm. Whereas, the minimum operating temperature of the product is -20 °c. Has a line regulation of 10 mv.

pdf icon
AZ1117C, Low Dropout Linear Regulator(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)
