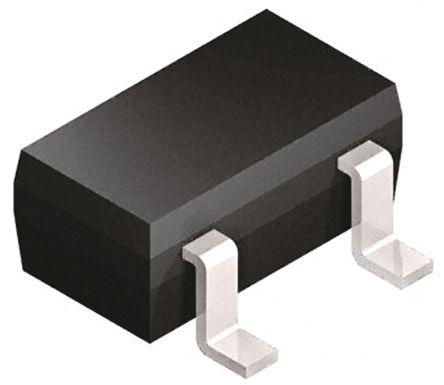

Vishay Dual Zener Diode, Common Anode, 5.6V 5% 300 mW SMT 3-Pin SOT-23

AZ23C5V6-E3-18 Vishay Dual Zener Diode, Common Anode, 5.6V 5% 300 mW SMT 3-Pin SOT-23
Vishay

Product Information

Nominal Zener Voltage:
5.6V
Dimensions:
3.1 x 1.43 x 1.05mm
Mounting Type:
Surface Mount
Maximum Zener Impedance:
10Ω
Maximum Operating Temperature:
+150 °C
Maximum Reverse Leakage Current:
100nA
Maximum Power Dissipation:
300 mW
Package Type:
SOT-23
Number of Elements per Chip:
2
Minimum Operating Temperature:
-55 °C
Zener Type:
General Purpose
Zener Voltage Tolerance:
5%
Diode Configuration:
Common Anode
Pin Count:
3
Test Current:
5mA
RoHs Compliant
Checking for live stock

This is Dual Zener Diode Common Anode 5.6V 5% 300 mW SMT 3-Pin SOT-23 manufactured by Vishay. The manufacturer part number is AZ23C5V6-E3-18. The given dimensions of the product include 3.1 x 1.43 x 1.05mm. The product is available in surface mount configuration. It has a maximum operating temperature of +150 °c. Whereas, the minimum operating temperature of the product is -55 °c. The diode features a common anode configuration.
