onsemi, 27V Zener Diode 7% 300 mW SMT 3-Pin SOT-23

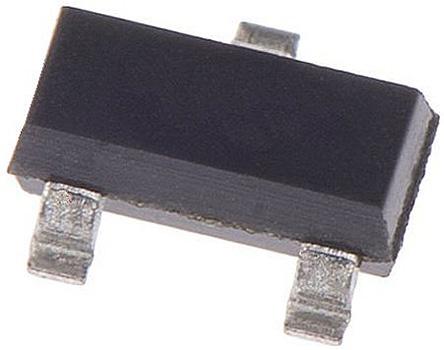

BZX84C27LT1G onsemi, 27V Zener Diode 7% 300 mW SMT 3-Pin SOT-23
BZX84C27LT1G
BZX84C27LT1G
onsemi

Product Information

Nominal Zener Voltage:
27V
Dimensions:
2.9 x 1.3 x 0.94mm
Mounting Type:
Surface Mount
Maximum Zener Impedance:
80Ω
Typical Voltage Temperature Coefficient:
23.35mV/°C
Maximum Operating Temperature:
+150 °C
Maximum Reverse Leakage Current:
50nA
Maximum Power Dissipation:
300 mW
Package Type:
SOT-23
Number of Elements per Chip:
1
Minimum Operating Temperature:
-65 °C
Zener Type:
Voltage Regulator
Zener Voltage Tolerance:
7%
Diode Configuration:
Single
Pin Count:
3
Test Current:
2mA
HTSUS:
8541.10.0050
RoHS Status:
ROHS3 Compliant
Package / Case:
TO-236-3, SC-59, SOT-23-3
Operating Temperature:
-65°C ~ 150°C (TJ)
Impedance (Max) (Zzt):
80 Ohms
Tolerance:
±7%
REACH Status:
REACH Unaffected
Voltage - Zener (Nom) (Vz):
27 V
Voltage - Forward (Vf) (Max) @ If:
900 mV @ 10 mA
Package:
Tape & Reel (TR)
Moisture Sensitivity Level (MSL):
1 (Unlimited)
standardLeadTime:
30 Weeks
Current - Reverse Leakage @ Vr:
50 nA @ 18.9 V
Mounting Type:
Surface Mount
Series:
BZX84CxxxLT1G
Supplier Device Package:
SOT-23-3 (TO-236)
Power - Max:
225 mW
Base Product Number:
BZX84C27
ECCN:
EAR99
RoHs Compliant
Checking for live stock

This is 27V Zener Diode 7% 300 mW SMT 3-Pin SOT-23 manufactured by onsemi. The manufacturer part number is BZX84C27LT1G. The given dimensions of the product include 2.9 x 1.3 x 0.94mm. The product is available in surface mount configuration. It has a maximum operating temperature of +150 °c. Whereas, the minimum operating temperature of the product is -65 °c. The diode features a single configuration. It is assigned with possible HTSUS value of 8541.10.0050. The product is rohs3 compliant. Moreover, the product comes in [Package/ Case]. The product has -65°c ~ 150°c (tj) operating temperature range. Moreover, 80 ohms is the maximum impedance value of the product. It features ±7% of tolerance value. In addition, it is reach unaffected. The nominal voltage of the Zener includes 27 v. The product has a maximum forward voltage of 900 mv @ 10 ma. It is shipped in tape & reel (tr). Its typical moisture sensitivity level is 1 (unlimited). It has a long 30 weeks standard lead time. 50 na @ 18.9 v is the reverse leakage value of a bespoke product. The product bzx84cxxxlt1g, is a highly preferred choice for users. sot-23-3 (to-236) is the supplier device package value. The maximum power of the product is 225 mw. Moreover, it corresponds to bzx84c27, a base product number of the product. The product is designated with the ear99 code number

pdf icon
Datasheet(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)
pdf icon
onsemi RoHS(Environmental Information)
pdf icon
Mult Dev Mold Comp Chg 7/Apr/2020(PCN Assembly/Origin)
pdf icon
Glue Mount Process 11/July/2008(PCN Design/Specification)
pdf icon
Copper Wire 08/Jun/2009(PCN Design/Specification)
pdf icon
BZX84B/CzzzLT1G, SZBZX84B/CzzzLT1G Series(Datasheets)
