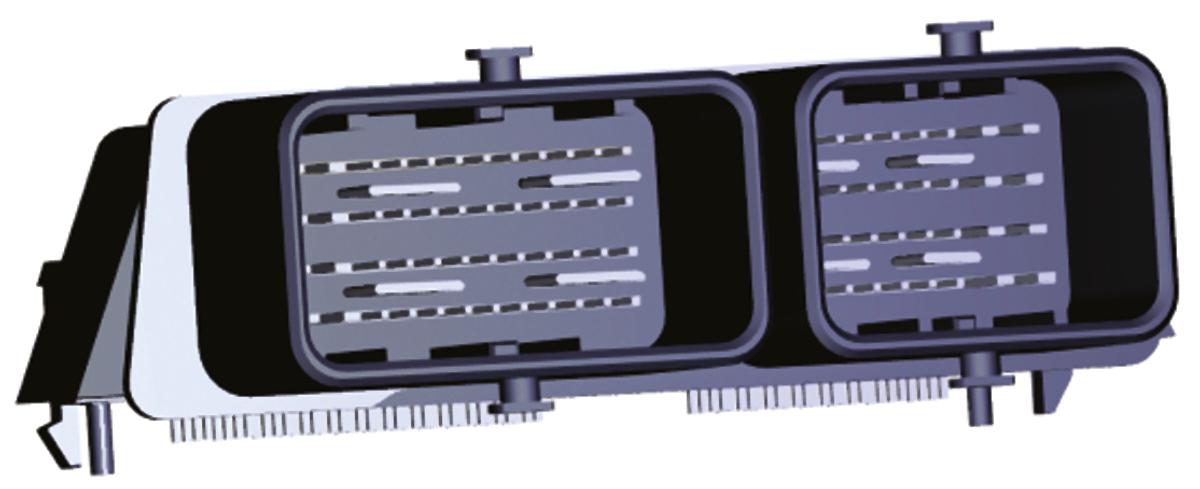

Molex CMC Series, 502225 Series Number, 4 Row 80 Way Through Hole Plug Header, with Solder Termination Method

502225-0801 Molex CMC Series, 502225 Series Number, 4 Row 80 Way Through Hole Plug Header, with Solder Termination Method
502225-0801 Molex CMC Series, 502225 Series Number, 4 Row 80 Way Through Hole Plug Header, with Solder Termination Method
Molex

Product Information

Number of Contacts:
80
Current Rating:
6A
Minimum Operating Temperature:
-40°C
Mounting Type:
Through Hole
Gender:
Male
Colour:
Black
Termination Method:
Solder
Height:
30.6mm
Housing Material:
PBT
Width:
99mm
Depth:
49mm
Number of Rows:
4
Contact Plating:
Tin
Series:
CMC
Contact Material:
Copper Alloy
Type:
Header
Maximum Operating Temperature:
+105°C
Series Number:
502225
HTSUS:
8536.69.4040
Package:
Bulk
Series:
*
RoHS Status:
RoHS non-compliant
REACH Status:
REACH info available upon request
Moisture Sensitivity Level (MSL):
Vendor Undefined
ECCN:
EAR99
RoHs Compliant
Checking for live stock

CMC Hybrid Connector, PCB Headers These CMC hybrid PCB Wire-to-Board Headers are right angle mount and can hold up to three different terminal sizes; 0.63mm, 1.50mm and 2.80 mm. For mating connectors see stock numbers 723-9347 or 723-9359 or 774-8144 typically. Molex CMC Hybrid Connectors

pdf icon
Datasheet(Technical Reference)
pdf icon
CMC Connector System - Brochure(Technical Reference)
pdf icon
Line Drawing(Technical Reference)
pdf icon
CMC Header 80 Pin - Drawing(Technical Reference)
pdf icon
Datasheet(Datasheets)

Reviews

  • Be the first to review.

FAQs

Yes. You can also search 502225-0801 on website for other similar products.
We accept all major payment methods for all products including ET13803740. Please check your shopping cart at the time of order.
You can order Molex brand products with 502225-0801 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Automotive Connectors category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Molex CMC Series, 502225 Series Number, 4 Row 80 Way Through Hole Plug Header, with Solder Termination Method. You can also check on our website or by contacting our customer support team for further order details on Molex CMC Series, 502225 Series Number, 4 Row 80 Way Through Hole Plug Header, with Solder Termination Method.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET13803740 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search"Molex" products on our website by using Enrgtech's Unique Manufacturing Part Number 502225-0801.
Yes. You can also search 502225-0801 on website for other similar products.
Yes. We ship 502225-0801 Internationally to many countries around the world.
