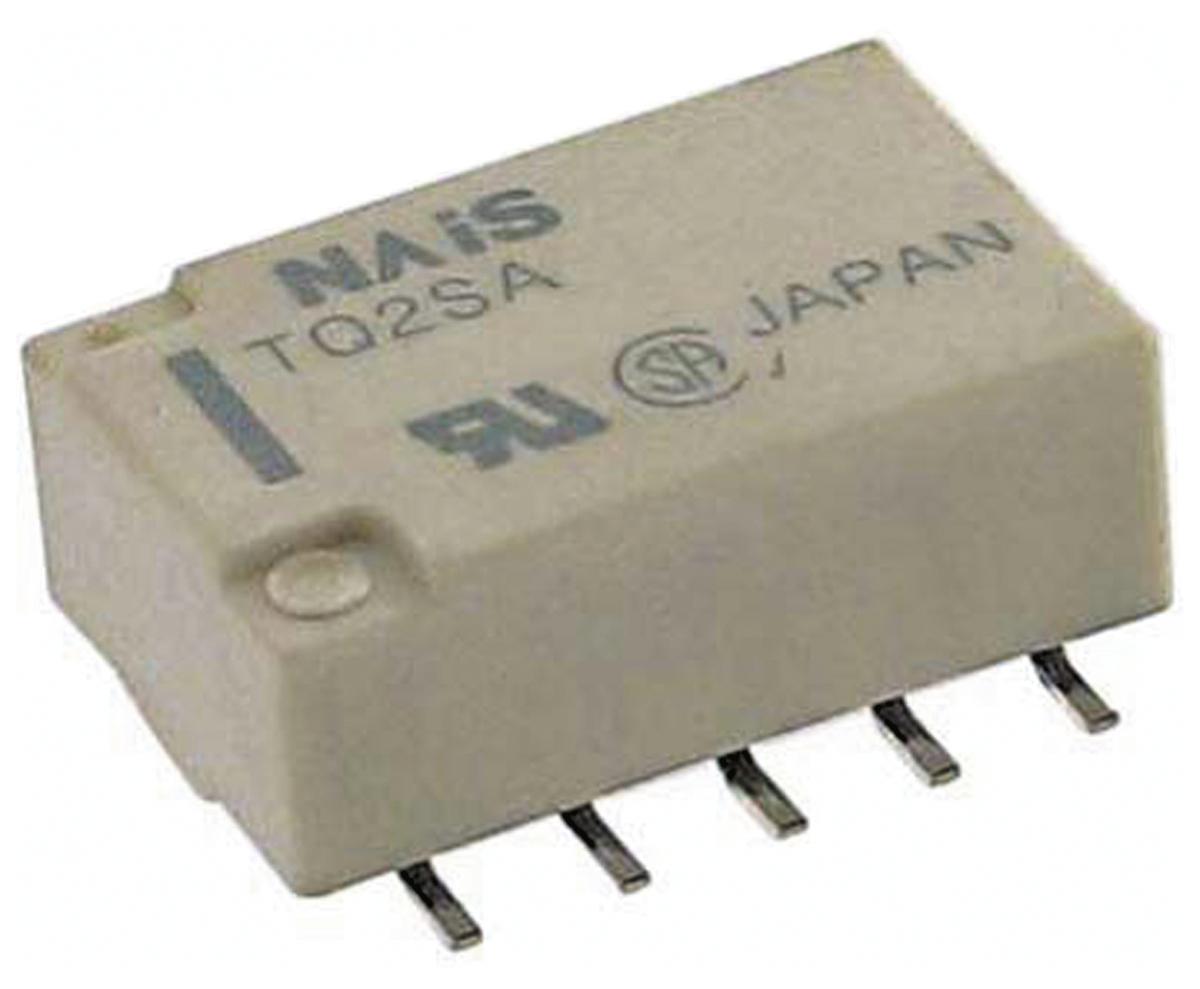

Panasonic Surface Mount High Frequency Relay, 5V dc Coil, DPDT

TQ2SA-5V Panasonic Surface Mount High Frequency Relay, 5V dc Coil, DPDT
TQ2SA-5V Panasonic Surface Mount High Frequency Relay, 5V dc Coil, DPDT
Panasonic

Product Information

Life:
100000 Operations
Depth:
9mm
Height:
5.6mm
Length:
14mm
Coil Power:
140mW
Dimensions:
14 x 9 x 5.6mm
Coil Voltage:
5V dc
Mounting Type:
Surface Mount
Coil Resistance:
178 Ω
Contact Voltage:
125 V ac, 220 V dc
Contact Material:
Silver Alloy
Switching Voltage:
125 V ac, 220 V dc
Contact Resistance:
75 mΩ
Contact Configuration:
DPDT
Operating Temperature Range:
-40 → +85°C
Maximum Operating Temperature:
+85°C
Minimum Operating Temperature:
-40°C
Operating Time Including Bounce:
4ms
RoHs Compliant
597 - In Stock

In Stock

Each

Quantity
Unit Price (ex VAT)
Price
1
£ 1.84
£ 1.84
50
£ 1.51
£ 75.50
100
£ 1.48
£ 148.00
Mfr Part No:
TQ2SA-5V
Seller:
Panasonic
Origin:
Warranty:
Manufacturer
Data Code:
ET100567144
Order Today!
From: United Kingdom
Est Ship Date: 10 Aug, 2026
Est Fastest Delivery: 11 Aug, 2026

This is Surface Mount High Frequency Relay 5V dc Coil DPDT manufactured by Panasonic. The manufacturer part number is TQ2SA-5V. The product comes in 9mm depth. In addition, the height is 5.6mm. Its accurate length is 14mm. Robust coil power of 140mw. The given dimensions of the product include 14 x 9 x 5.6mm. The coil voltage of the product is 5v dc. The product is available in surface mount configuration. It holds up to 178 ω coil resistance. The product is made from sturdy silver alloy materials. The product's switching voltage is 125 v ac, 220 v dc. It features a 75 mω contact resistance. It has a maximum operating temperature of +85°c. Whereas, the minimum operating temperature of the product is -40°c.

pdf icon
0900766b80e0dfcf.pdf(RS)

Reviews

  • Be the first to review.

FAQs

Yes. You can also search TQ2SA-5V on website for other similar products.
We accept all major payment methods for all products including ET100567144. Please check your shopping cart at the time of order.
You can order Panasonic brand products with TQ2SA-5V directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in HF & RF Relays category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Panasonic Surface Mount High Frequency Relay, 5V dc Coil, DPDT. You can also check on our website or by contacting our customer support team for further order details on Panasonic Surface Mount High Frequency Relay, 5V dc Coil, DPDT.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET100567144 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search"Panasonic" products on our website by using Enrgtech's Unique Manufacturing Part Number TQ2SA-5V.
Yes. You can also search TQ2SA-5V on website for other similar products.
Yes. We ship TQ2SA-5V Internationally to many countries around the world.
