Width:
235mm
Height:
150mm
Length:
85mm
Weight:
1 (with Battery; Excluding Case)kg
IP Rating:
IP54
Plug Type:
BS 1363, LT 300-EN-BS
Test Type:
Continuity
Calibrated:
UKAS
Dimensions:
85 x 235 x 150mm
Battery Type:
AA Alkaline
Display Type:
LCD
Non-Tripping:
Yes
Power Source:
Battery
RCD Ramp Test:
Yes
RCD Test Type:
A, AC, B, S
Interface Type:
Wireless
Model Number p:

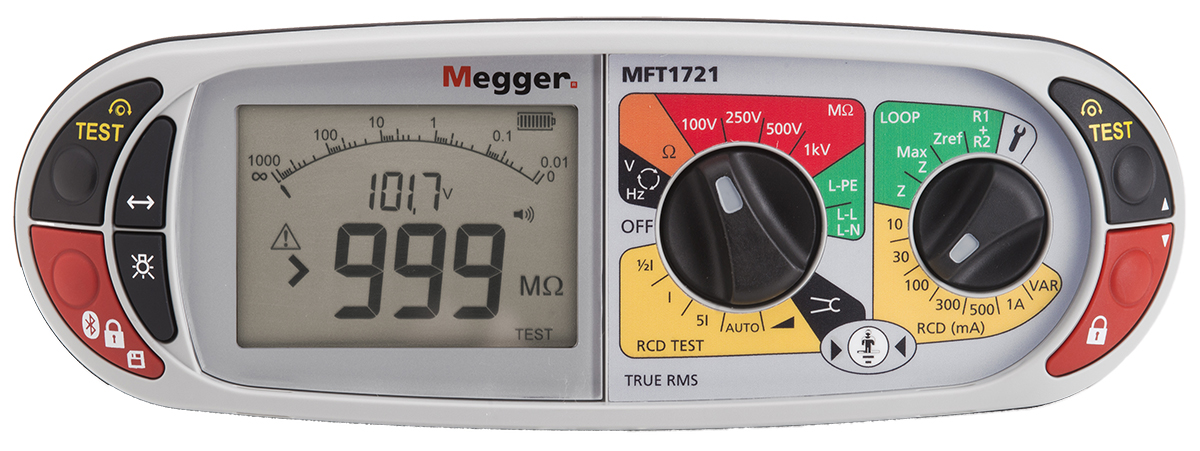

MFT1721
Test Standards:
EC 61010-1:2010, IEC 61010-031:2008, IEC 61010-30:2010, IEC 61557:2007
Safety Category:
CAT III 600 V, CAT IV 300 V
Continuity Range:
0.01 → 99.9 kΩ
Downloadable Data:
Yes
Automatic RCD Test:
Yes
Safety Category Level:
CAT III, CAT IV
Continuity Test Current:
200mA
Insulation Test Voltage:
100 V, 250 V, 500 V, 1000V
Safety Category Voltage:
300 V, 600 V
Loop Impedance Test Type:
2 Wire, 3 Wire
Voltage Measurement Range:
10 → 600V
Maximum Voltage Measurement:
600V
Operating Temperature Range:
-10 → +55 °C
Earth Resistance Measurement:
Yes
Maximum Continuity Resistance:
99.9kΩ
Maximum Operating Temperature:
+55°C
Minimum Continuity Resistance:
0.01Ω
Minimum Operating Temperature:
-10°C
