Width:
84mm
Height:
45mm
Length:
167mm
Weight:
268g
True RMS:
No
Calibrated:
RSCAL
Dimensions:
167 x 84 x 45mm
Display Type:
Digital
Model Number p:

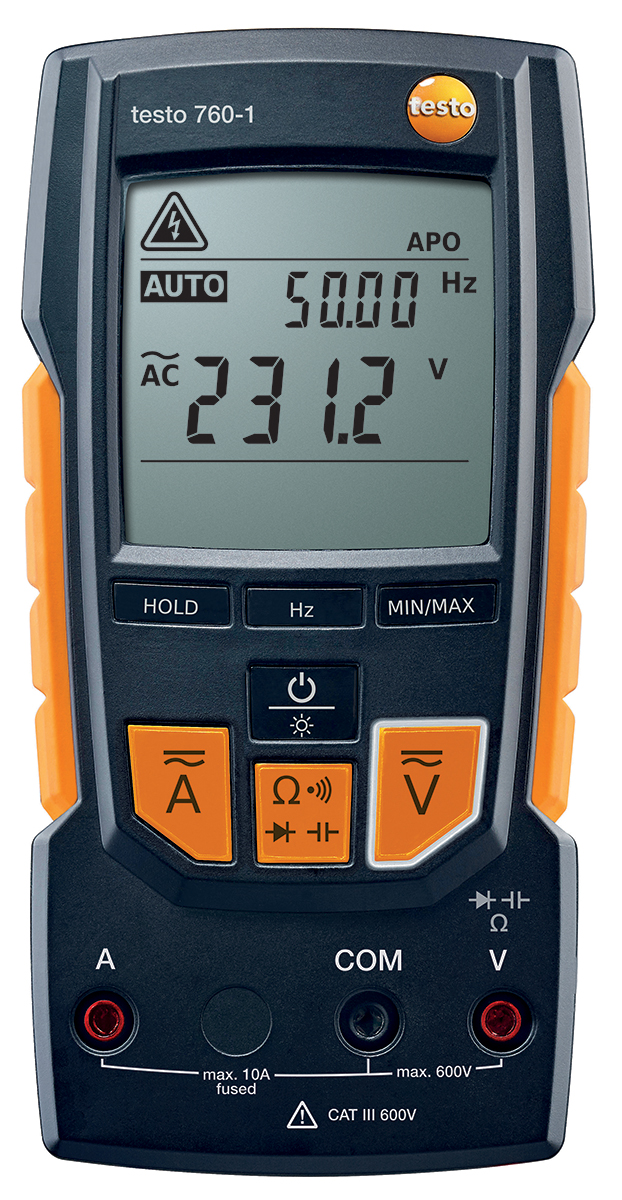

760-1
Multimeter Type:
Handheld
Maximum Frequency:
500kHz
Functions Measured:
AC Current, AC Voltage, Capacitance, DC Current, DC Voltage, Frequency, Resistance
Safety Category Level:
CAT III, CAT IV
Safety Category Voltage:
300 V, 600V
Best AC Current Accuracy:
0.8 %
Best AC Voltage Accuracy:
0.8 %
Best DC Voltage Accuracy:
0.8 %
Maximum Operating Temperature:
+50°C
Minimum Operating Temperature:
-10°C
Best Resistance Measurement Accuracy:
0.8 %
Best Capacitance Measurement Accuracy:
0.8 %
Best Temperature Measurement Accuracy:
0.8 %
Absolute Maximum AC Current Measurement:
10A ac
Absolute Maximum AC Voltage Measurement:
600V ac
Absolute Maximum DC Current Measurement:
10A dc
Absolute Maximum DC Voltage Measurement:
600V dc
Absolute Maximum Resistance Measurement:
40MΩ
Absolute Maximum Capacitance Measurement:
100µF
Absolute Maximum Temperature Measurement:
+500°C
