Width:
94.4mm
Height:
203.5mm
Length:
59mm
Weight:
527g
True RMS:
Yes
Calibrated:
UKAS
Dimensions:
59 x 94.4 x 203.5mm
Battery Type:
9V, Rechargeable NiMH (7.2 V), Rechargeable NiMH (8.4 V)
Display Type:
Digital
Model Number p:

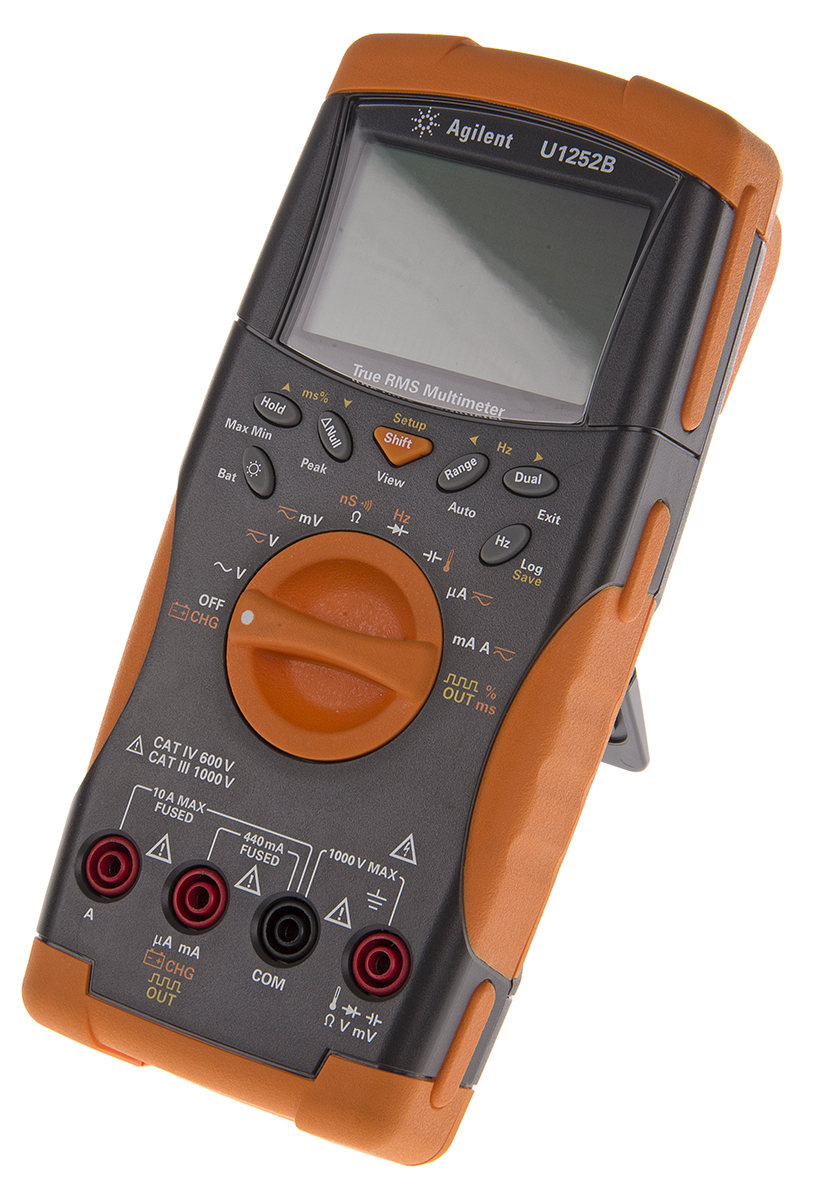

U1252B
Multimeter Type:
Handheld
Maximum Frequency:
100kHz
Functions Measured:
Capacitance, DC Current, DC Voltage, Diode, Frequency, Resistance, Temperature
Safety Category Level:
CAT III, CAT IV
Safety Category Voltage:
600 V, 1000V
Best AC Current Accuracy:
±3% + 60 Digits
Best AC Voltage Accuracy:
±0.4% + 40 Digits
Best DC Current Accuracy:
±0.3% + 5 Digits
Best DC Voltage Accuracy:
±0.03% + 5 Digits
Maximum Operating Temperature:
+55°C
Minimum Operating Temperature:
-20°C
AC Current Measurement Resolution:
0.01µA ac
AC Voltage Measurement Resolution:
0.001mV ac
DC Current Measurement Resolution:
0.01µA dc
DC Voltage Measurement Resolution:
0.001mV dc
Resistance Measurement Resolution:
10mΩ
Capacitance Measurement Resolution:
1pF
Temperature Measurement Resolution:
0.1°C
Best Resistance Measurement Accuracy:
±3% + 10 Digits
Best Capacitance Measurement Accuracy:
±3% + 10 Digits
Best Temperature Measurement Accuracy:
±0.3% + 3 °C
Absolute Maximum AC Current Measurement:
10A ac
Absolute Maximum AC Voltage Measurement:
1000V ac
Absolute Maximum DC Current Measurement:
10A dc
Absolute Maximum DC Voltage Measurement:
1000V dc
Absolute Maximum Resistance Measurement:
500MΩ
Absolute Maximum Capacitance Measurement:
100mF
Absolute Maximum Temperature Measurement:
+1372°C
