Width:
57mm
Height:
180mm
Length:
82mm
Weight:
255g
True RMS:
Yes
Calibrated:
UKAS
Dimensions:
82 x 57 x 180mm
Battery Type:
9V
Display Type:
Digital
Model Number p:

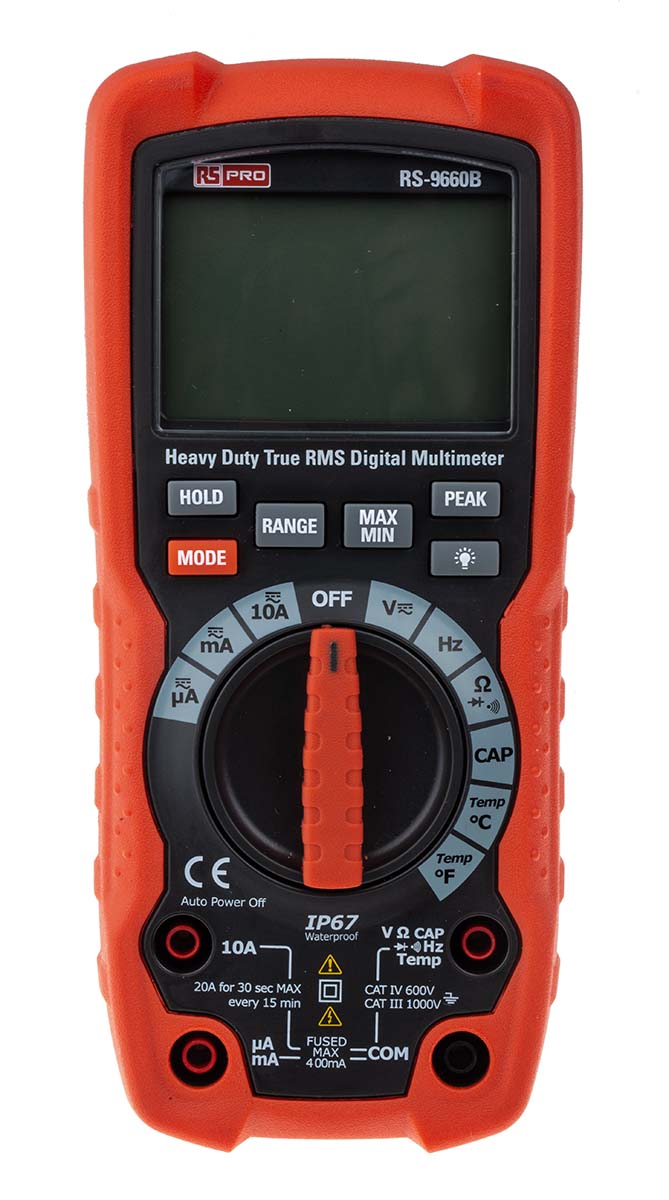

RS-9660B
Multimeter Type:
Handheld
Maximum Frequency:
10MHz
Functions Measured:
AC Current, AC Voltage, Capacitance, DC Current, DC Voltage, Frequency, Resistance
Safety Category Level:
CAT III, CAT IV
Safety Category Voltage:
600 V, 1000V
Best AC Current Accuracy:
±1.2 %
Best AC Voltage Accuracy:
±1 %
Best DC Current Accuracy:
±1 %
Best DC Voltage Accuracy:
±0.5 %
Best Resistance Measurement Accuracy:
±1 %
Absolute Maximum AC Current Measurement:
10A ac
Absolute Maximum AC Voltage Measurement:
1000V ac
Absolute Maximum DC Current Measurement:
10A dc
Absolute Maximum DC Voltage Measurement:
1000V dc
Absolute Maximum Resistance Measurement:
40MΩ
Absolute Maximum Capacitance Measurement:
40mF
Absolute Maximum Temperature Measurement:
+1000°C
