Width:
87mm
Height:
45mm
Length:
200mm
Weight:
350g
True RMS:
Yes
Calibrated:
RSCAL
Dimensions:
200 x 87 x 45mm
Battery Type:
AA
Display Type:
Digital
Model Number p:

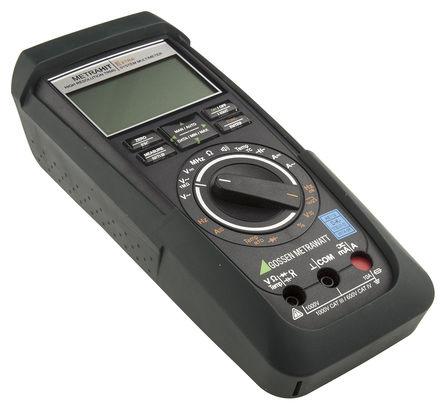

METRAHIT PM XTRA
Multimeter Type:
Handheld
Maximum Frequency:
100kHz
Functions Measured:
AC Current, AC Voltage, Battery Test, Capacitance, DC Current, DC Voltage, Diode, Frequency, Resistance, Temperature
Safety Category Level:
CAT III, CAT IV
Safety Category Voltage:
600 V, 1000V
Best AC Current Accuracy:
±0.1% + 5 Digits
Best AC Voltage Accuracy:
±0.05% + 5 Digits
Best DC Current Accuracy:
±0.1% + 5 Digits
Best DC Voltage Accuracy:
±0.05% + 5 Digits
Maximum Operating Temperature:
+40°C
Minimum Operating Temperature:
0°C
AC Current Measurement Resolution:
10nA ac
AC Voltage Measurement Resolution:
10µV ac
DC Current Measurement Resolution:
10nA dc
DC Voltage Measurement Resolution:
10µV dc
Resistance Measurement Resolution:
10mΩ
Capacitance Measurement Resolution:
10pF
Temperature Measurement Resolution:
0.1°C
Best Resistance Measurement Accuracy:
±5% + 10 Digits
Best Capacitance Measurement Accuracy:
±5% + 6 Digits
Best Temperature Measurement Accuracy:
±1% + 5 Digits
Absolute Maximum AC Current Measurement:
10A ac
Absolute Maximum AC Voltage Measurement:
1000V ac
Absolute Maximum DC Current Measurement:
10A dc
Absolute Maximum DC Voltage Measurement:
1000V dc
Absolute Maximum Resistance Measurement:
60MΩ
Absolute Maximum Capacitance Measurement:
600µF
Absolute Maximum Temperature Measurement:
+1372°C
