Width:
96mm
Height:
60mm
Length:
196mm
Weight:
400g
True RMS:
Yes
Calibrated:
RSCAL
Dimensions:
196 x 96 x 60mm
Battery Type:
9V
Display Type:
Digital

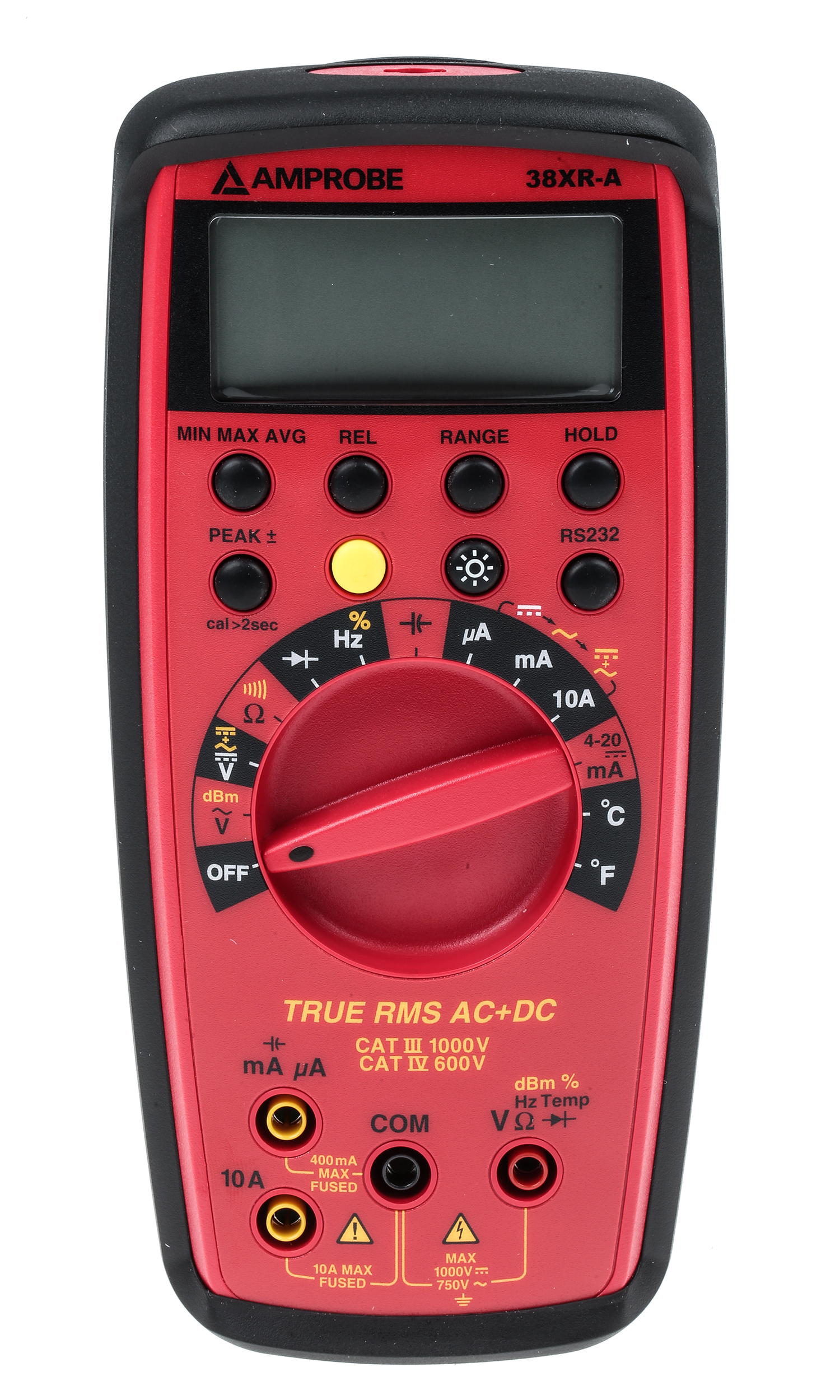

Model Number p:
38XRA
Multimeter Type:
Handheld
Maximum Frequency:
2kHz
Functions Measured:
AC Current, AC Voltage, Capacitance, Continuity, DC Current, DC Voltage, Decibel, Diode, Duty Cycle, Frequency, Resistance, Temperature
Safety Category Level:
CAT III, CAT IV
Safety Category Voltage:
600 V, 1000V
Best AC Current Accuracy:
±2.5% + 10 Digits
Best AC Voltage Accuracy:
±2% + 10 Digits
Best DC Current Accuracy:
±1.5% + 10 Digits
Best DC Voltage Accuracy:
±0.25% + 5 Digits
Maximum Operating Temperature:
+45°C
Minimum Operating Temperature:
0°C
AC Current Measurement Resolution:
0.01µA ac
AC Voltage Measurement Resolution:
100µV ac
DC Current Measurement Resolution:
0.01µA dc
DC Voltage Measurement Resolution:
100µV dc
Resistance Measurement Resolution:
100mΩ
Capacitance Measurement Resolution:
10pF
Temperature Measurement Resolution:
1°C
Best Resistance Measurement Accuracy:
±2% + 10 Digits
Best Capacitance Measurement Accuracy:
±3% + 5 Digits
Best Temperature Measurement Accuracy:
±2% + 2 °C
Absolute Maximum AC Current Measurement:
10A ac
Absolute Maximum AC Voltage Measurement:
750V ac
Absolute Maximum DC Current Measurement:
10A dc
Absolute Maximum DC Voltage Measurement:
1000V dc
Absolute Maximum Resistance Measurement:
40MΩ
Absolute Maximum Capacitance Measurement:
400µF
Absolute Maximum Temperature Measurement:
+1300°C
