Width:
90mm
Height:
43mm
Length:
185mm
Weight:
420g
True RMS:
Yes
Calibrated:
RSCAL
Dimensions:
185 x 90 x 43mm
Display Type:
Digital

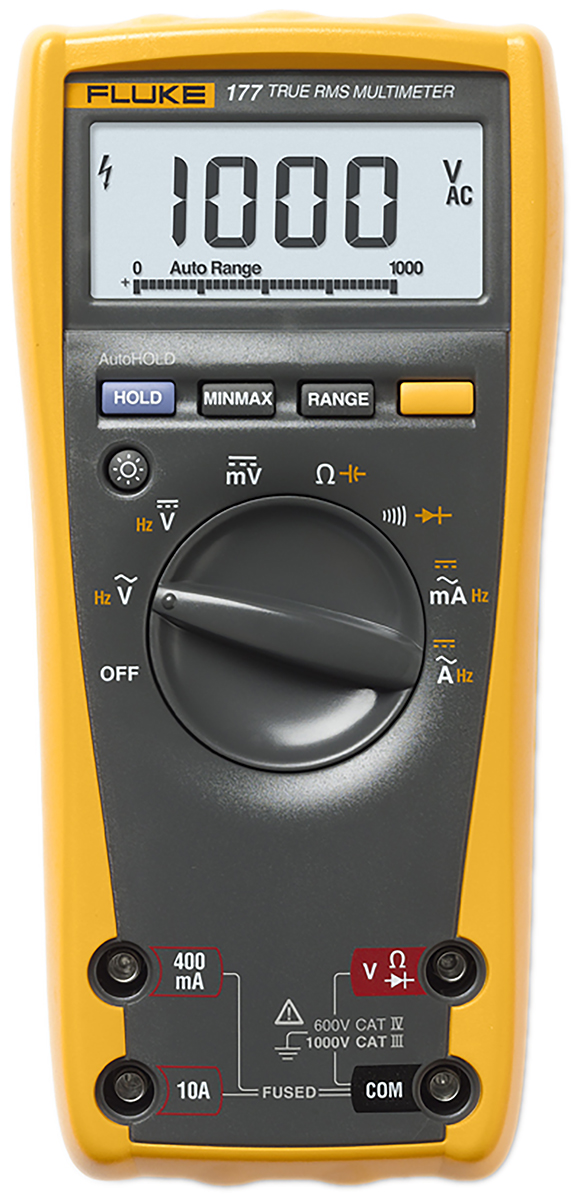

Model Number p:
177
Multimeter Type:
Handheld
Maximum Frequency:
1kHz
Functions Measured:
AC Current, AC Voltage, Capacitance, Continuity, DC Current, DC Voltage, Diode, Frequency, Resistance
Safety Category Level:
CAT III, CAT IV
Safety Category Voltage:
600 V, 1000V
Best AC Current Accuracy:
±1.5% + 3 Digits
Best AC Voltage Accuracy:
±1% + 3 Digits
Best DC Current Accuracy:
±1% + 3 Digits
Best DC Voltage Accuracy:
±0.1% + 2 Digits
Maximum Operating Temperature:
+50°C
Minimum Operating Temperature:
-10°C
AC Current Measurement Resolution:
0.01mA ac
AC Voltage Measurement Resolution:
0.1mV ac
DC Current Measurement Resolution:
0.01mA dc
DC Voltage Measurement Resolution:
0.1mV dc
Resistance Measurement Resolution:
100mΩ
Capacitance Measurement Resolution:
1nF
Best Resistance Measurement Accuracy:
±1.5% + 3 Digits
Best Capacitance Measurement Accuracy:
±10 %
Absolute Maximum AC Current Measurement:
10A ac
Absolute Maximum AC Voltage Measurement:
1000V ac
Absolute Maximum DC Current Measurement:
10A dc
Absolute Maximum DC Voltage Measurement:
1000V dc
Absolute Maximum Resistance Measurement:
50MΩ
Absolute Maximum Capacitance Measurement:
9.999F
