Width:
72mm
Height:
155mm
Length:
32mm
Weight:
210g
True RMS:
No
Calibrated:
RSCAL
Dimensions:
32 x 72 x 155mm
Battery Type:
9V
Display Type:
Digital
Model Number p:

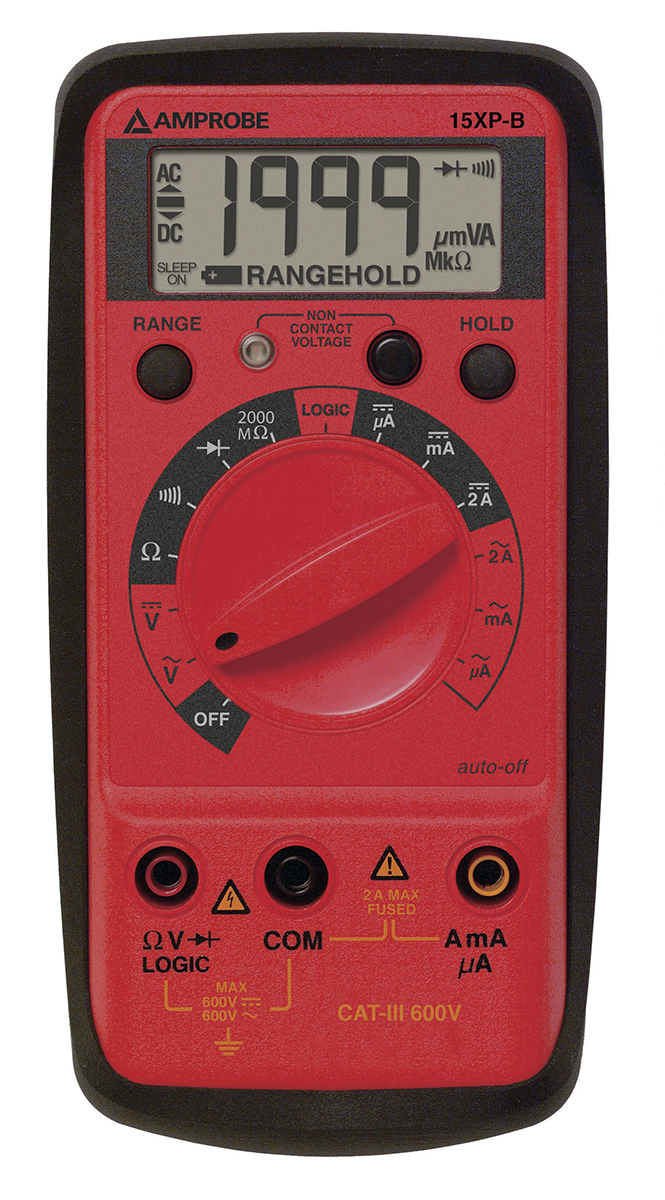

15XPB
Multimeter Type:
Handheld
Maximum Frequency:
500Hz
Functions Measured:
AC Current, AC Voltage, DC Current, DC Voltage, Diode, Logic Test, Resistance
Safety Category Level:
CAT II, CAT III
Safety Category Voltage:
600V
Best AC Current Accuracy:
±2.5% + 5 Digits
Best AC Voltage Accuracy:
±1.5% + 5 Digits
Best DC Current Accuracy:
±2% + 3 Digits
Best DC Voltage Accuracy:
±0.5% + 1 Digit
Maximum Operating Temperature:
+50°C
Minimum Operating Temperature:
0°C
AC Current Measurement Resolution:
0.1µA ac
AC Voltage Measurement Resolution:
100µV ac
DC Current Measurement Resolution:
0.1µA dc
DC Voltage Measurement Resolution:
100µV dc
Resistance Measurement Resolution:
100mΩ
Best Resistance Measurement Accuracy:
±5% + 20 Digits
Absolute Maximum AC Current Measurement:
2A ac
Absolute Maximum AC Voltage Measurement:
600V ac
Absolute Maximum DC Current Measurement:
2A dc
Absolute Maximum DC Voltage Measurement:
600V dc
Absolute Maximum Resistance Measurement:
2GΩ
