Width:
214mm
Height:
90mm
Length:
369mm
Weight:
5.4kg
True RMS:
No
Dimensions:
90 x 214 x 369mm
Display Type:
Digital
Model Number p:

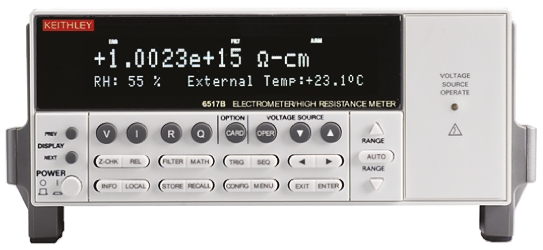

6517B/E
Multimeter Type:
Bench
Functions Measured:
AC Current, AC Voltage, DC Current, DC Voltage, Resistance, Temperature
Best AC Current Accuracy:
±1% + 30 Digits
Best AC Voltage Accuracy:
±0.06% + 3 Digits
Best DC Current Accuracy:
±1% + 30 Digits
Best DC Voltage Accuracy:
±0.06% + 3 Digits
Maximum Operating Temperature:
+50°C
Minimum Operating Temperature:
0°C
AC Voltage Measurement Resolution:
10µV ac
DC Voltage Measurement Resolution:
10µV dc
Resistance Measurement Resolution:
10Ω
Best Resistance Measurement Accuracy:
±1.15% + 1 Digit
Best Temperature Measurement Accuracy:
±0.3% + 1.5 °C
Absolute Maximum AC Current Measurement:
20mA ac
Absolute Maximum AC Voltage Measurement:
200V ac
Absolute Maximum DC Current Measurement:
20mA dc
Absolute Maximum DC Voltage Measurement:
200V dc
Absolute Maximum Resistance Measurement:
10^16Ω
Absolute Maximum Temperature Measurement:
+150°C
