Width:
255mm
Height:
106mm
Length:
425mm
Weight:
4.1kg
True RMS:
Yes
Dimensions:
425 x 255 x 106mm
Display Type:
7.5 Digital
Model Number p:

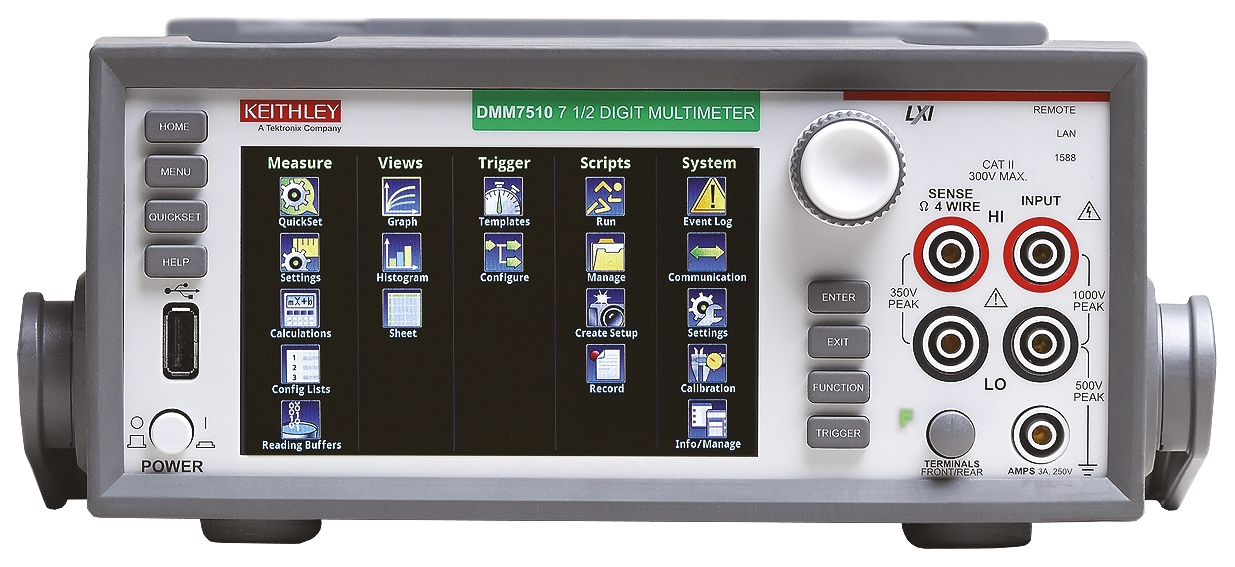

DMM7510
Multimeter Type:
Bench
Maximum Frequency:
500kHz
Functions Measured:
AC Current, AC Voltage, DC Current, DC Voltage, Resistance, Temperature
Maximum Operating Temperature:
+50°C
Minimum Operating Temperature:
0°C
AC Current Measurement Resolution:
1nA ac
AC Voltage Measurement Resolution:
0.1µV ac
DC Current Measurement Resolution:
1µA dc
DC Voltage Measurement Resolution:
10nV dc
Resistance Measurement Resolution:
100nΩ
Capacitance Measurement Resolution:
0.1pF
Temperature Measurement Resolution:
0.01°C
Best Capacitance Measurement Accuracy:
0.4+0.1 %
Best Temperature Measurement Accuracy:
±0.06 (4-Wire) °C, ±0.75 (3-Wire) °C
Absolute Maximum AC Current Measurement:
10A ac
Absolute Maximum AC Voltage Measurement:
700V ac
Absolute Maximum DC Current Measurement:
10A dc
Absolute Maximum DC Voltage Measurement:
1000V dc
Absolute Maximum Resistance Measurement:
1GΩ
Absolute Maximum Capacitance Measurement:
1mF
Absolute Maximum Temperature Measurement:
+850°C
