Width:
303.2mm
Height:
103.8mm
Length:
261.1mm
Weight:
3.8kg
True RMS:
Yes
Dimensions:
261.1 x 303.2 x 103.8mm
Display Type:
Digital
Model Number p:

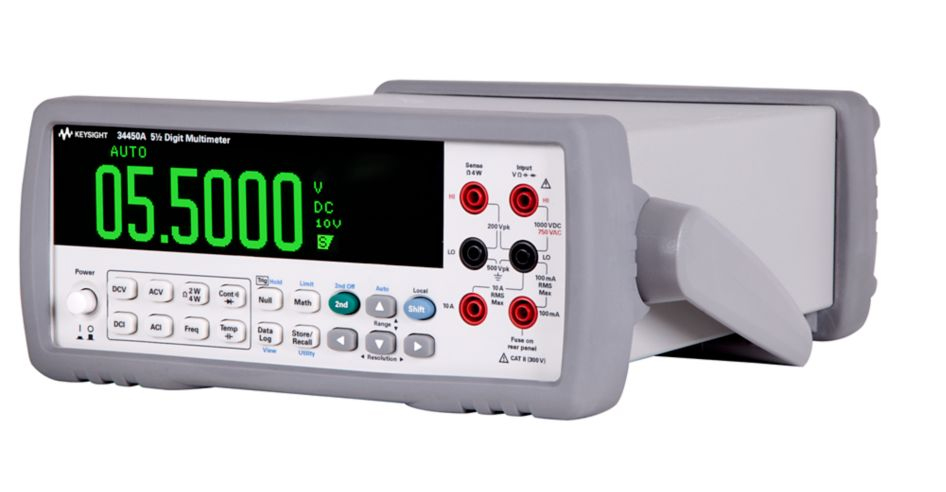

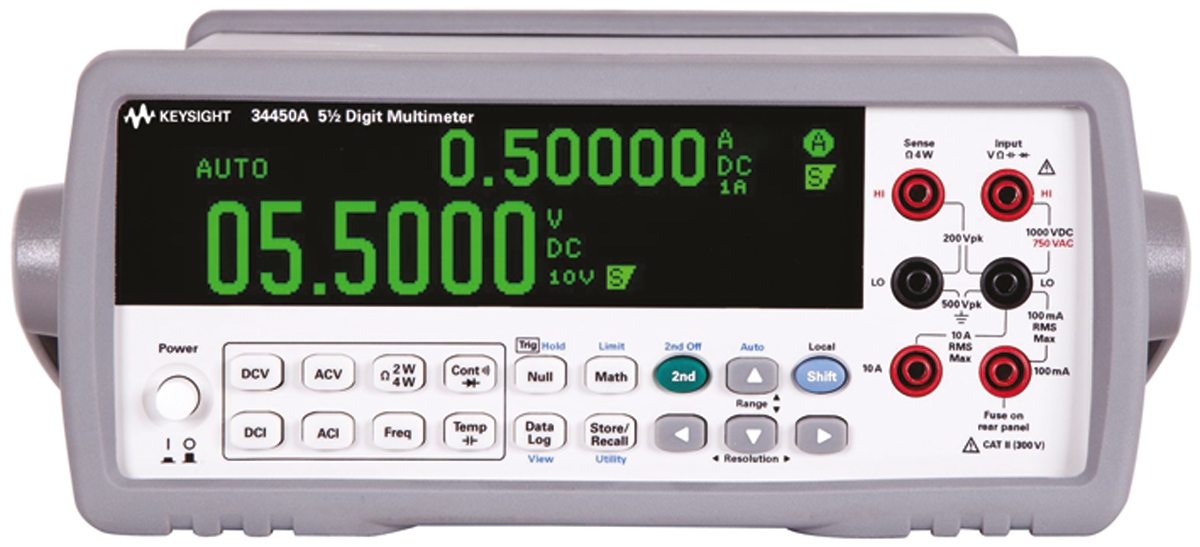

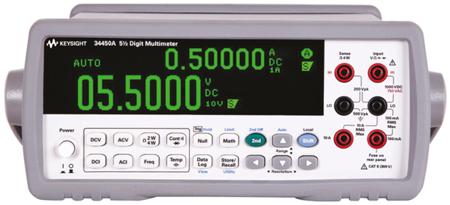

Truevolt 34450A
Multimeter Type:
Bench
Maximum Frequency:
100kHz
Functions Measured:
AC Current, AC Voltage, Capacitance, Continuity, DC Current, DC Voltage, Diode, Frequency, Resistance, Temperature
Safety Category Level:
CAT I, CAT II
Safety Category Voltage:
600 V, 1000V
Best AC Current Accuracy:
±0.5% + 0.1
Best AC Voltage Accuracy:
±0.2% + 0.1
Best DC Current Accuracy:
±0.05% + 0.007
Best DC Voltage Accuracy:
±0.015 %
Maximum Operating Temperature:
+55°C
Minimum Operating Temperature:
0°C
Best Resistance Measurement Accuracy:
±0.05% + 0.008
Best Capacitance Measurement Accuracy:
1 + 0.5
Best Temperature Measurement Accuracy:
±0.2 °C
Absolute Maximum AC Current Measurement:
10A ac
Absolute Maximum AC Voltage Measurement:
750V ac
Absolute Maximum DC Current Measurement:
10A dc
Absolute Maximum DC Voltage Measurement:
1000V dc
Absolute Maximum Resistance Measurement:
100MΩ
Absolute Maximum Capacitance Measurement:
10mF
Absolute Maximum Temperature Measurement:
+150°C
