Width:
90mm
Height:
190mm
Length:
45mm
Weight:
400g
True RMS:
Yes
Dimensions:
90 x 45 x 190mm
Battery Type:
9 V, IEC 6LR61
Display Type:
Digital
Model Number p:

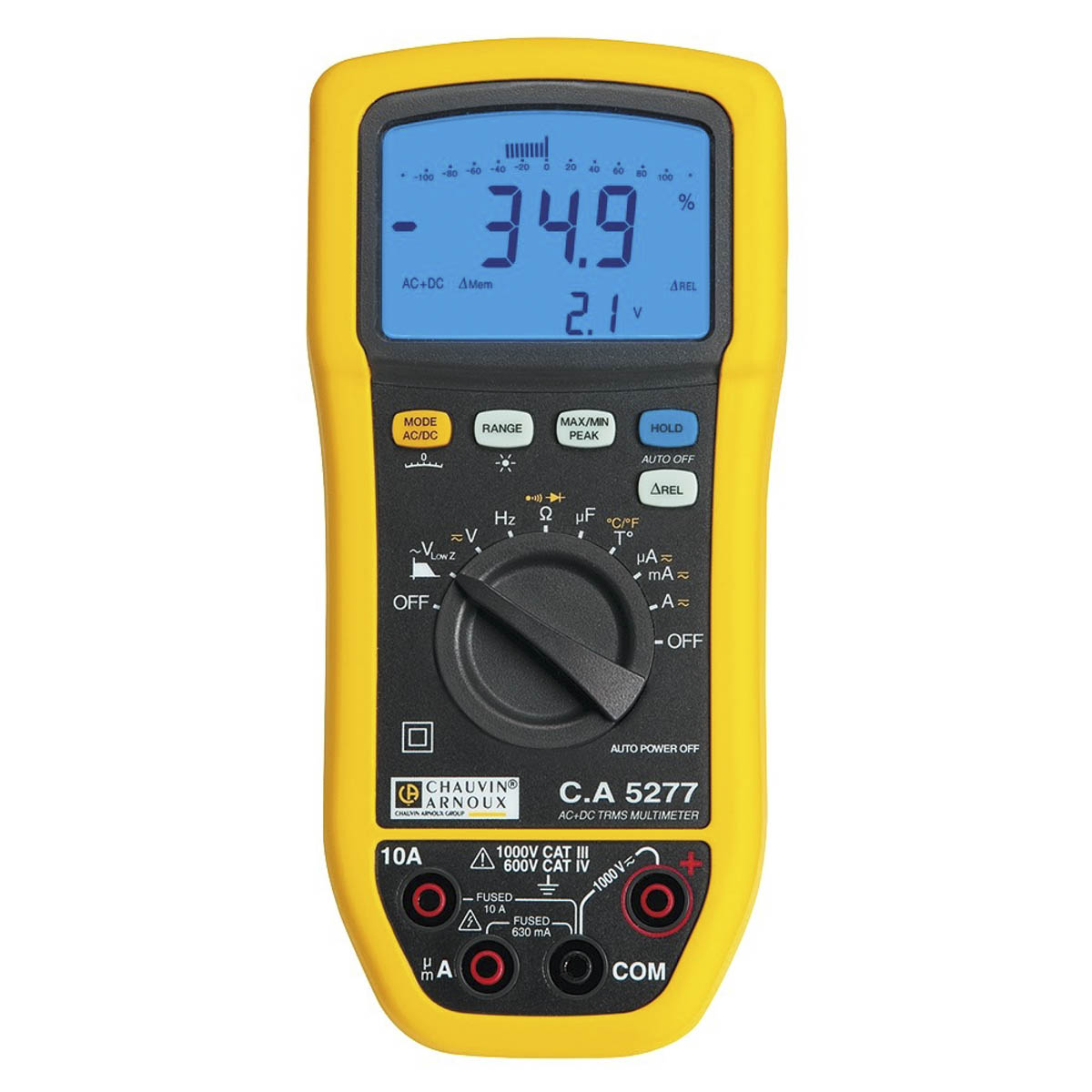

CA 5277
Multimeter Type:
Handheld
Maximum Frequency:
20kHz
Functions Measured:
AC Current, AC Voltage, Capacitance, Continuity, DC Current, DC Voltage, Diode, Frequency, Low Impedance Voltage, Resistance, Temperature
Safety Category Level:
CAT III, CAT IV
Safety Category Voltage:
CAT III 1000 V, CAT IV 600V
Best AC Current Accuracy:
±1 % + 3 Digits
Best AC Voltage Accuracy:
±1 % + 3 digits
Best DC Current Accuracy:
±0.8 % + 2 digits
Best DC Voltage Accuracy:
0.09% + 2 cts
Maximum Operating Temperature:
+50°C
Minimum Operating Temperature:
-10°C
AC Current Measurement Resolution:
1µA ac
AC Voltage Measurement Resolution:
0.01mV ac
DC Current Measurement Resolution:
1µA dc
DC Voltage Measurement Resolution:
0.01mV dc
Resistance Measurement Resolution:
100mΩ
Capacitance Measurement Resolution:
1pF
Temperature Measurement Resolution:
0.1°C
Best Resistance Measurement Accuracy:
±1 % + 2 digits
Best Capacitance Measurement Accuracy:
±1 % + 5 digits
Best Temperature Measurement Accuracy:
±0.5 % + 2 °C
Absolute Maximum AC Current Measurement:
10A ac
Absolute Maximum AC Voltage Measurement:
1000V ac
Absolute Maximum DC Current Measurement:
20A dc
Absolute Maximum DC Voltage Measurement:
1000V dc
Absolute Maximum Resistance Measurement:
60MΩ
Absolute Maximum Capacitance Measurement:
60mF
Absolute Maximum Temperature Measurement:
+1200°C
