Width:
280mm
Height:
88mm
Length:
222mm
Weight:
2.7kg
True RMS:
Yes
Dimensions:
222 x 280 x 88mm
Display Type:
Digital
Model Number p:

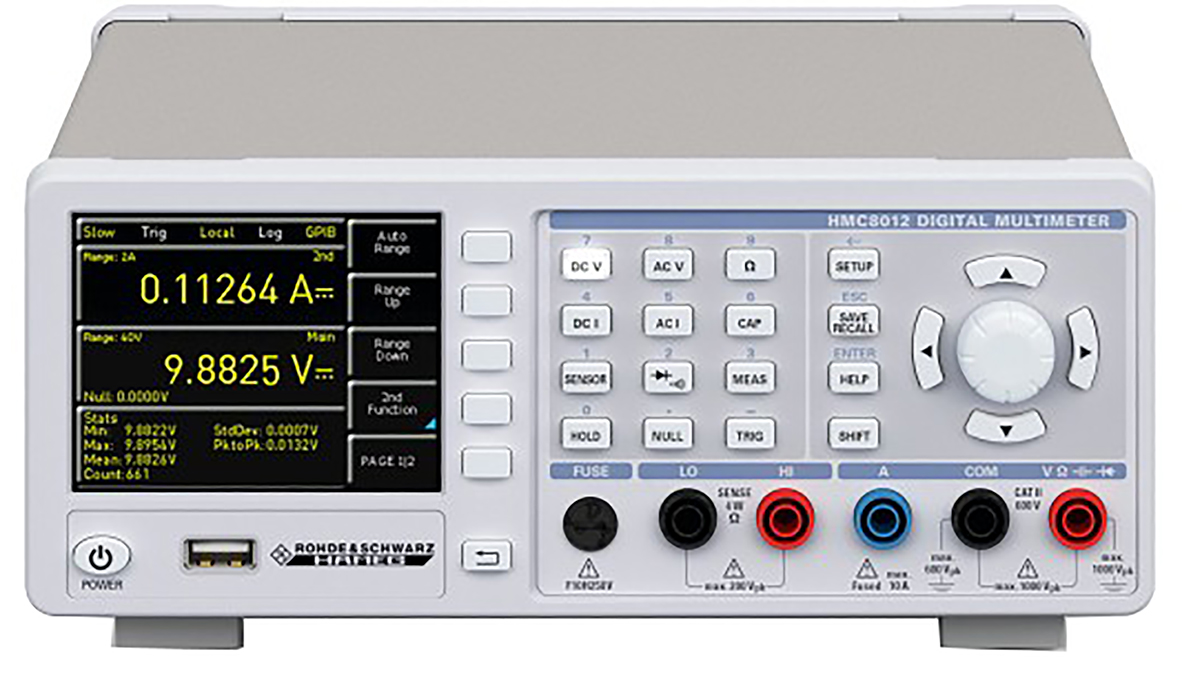

HMC8012
Multimeter Type:
Bench
Maximum Frequency:
999.9kHz
Functions Measured:
AC Current, AC Voltage, Capacitance, Continuity, DC Current, DC Voltage, Diode, Resistance
Safety Category Level:
CAT I, CAT II
Safety Category Voltage:
600 V, 1000V
Best AC Current Accuracy:
±0.05 Reading + 0.05 Range %
Best AC Voltage Accuracy:
±0.3 Reading + 0.05 Range %
Best DC Current Accuracy:
±0.05 Reading + 0.010 Range %
Best DC Voltage Accuracy:
±0.015 Reading +0.002%
Maximum Operating Temperature:
+55°C
Minimum Operating Temperature:
0°C
AC Current Measurement Resolution:
100nA ac
AC Voltage Measurement Resolution:
1µV ac
DC Current Measurement Resolution:
100nA dc
DC Voltage Measurement Resolution:
1µV dc
Resistance Measurement Resolution:
1mΩ
Capacitance Measurement Resolution:
1pF
Temperature Measurement Resolution:
0.1°C
Best Resistance Measurement Accuracy:
±0.015 Reading + 0.002 Range %
Best Capacitance Measurement Accuracy:
±1 Reading + 0.5 Range %
Absolute Maximum AC Current Measurement:
10A ac
Absolute Maximum AC Voltage Measurement:
750V ac
Absolute Maximum DC Current Measurement:
10A dc
Absolute Maximum DC Voltage Measurement:
1000V dc
Absolute Maximum Resistance Measurement:
250MΩ
Absolute Maximum Capacitance Measurement:
500µF
