Width:
75mm
Height:
155mm
Length:
75mm
Weight:
320g
True RMS:
Yes
Calibrated:
RSCAL
Dimensions:
155 x 75 x 75mm
Battery Type:
9 V, IEC 6LR61
Display Type:
Digital

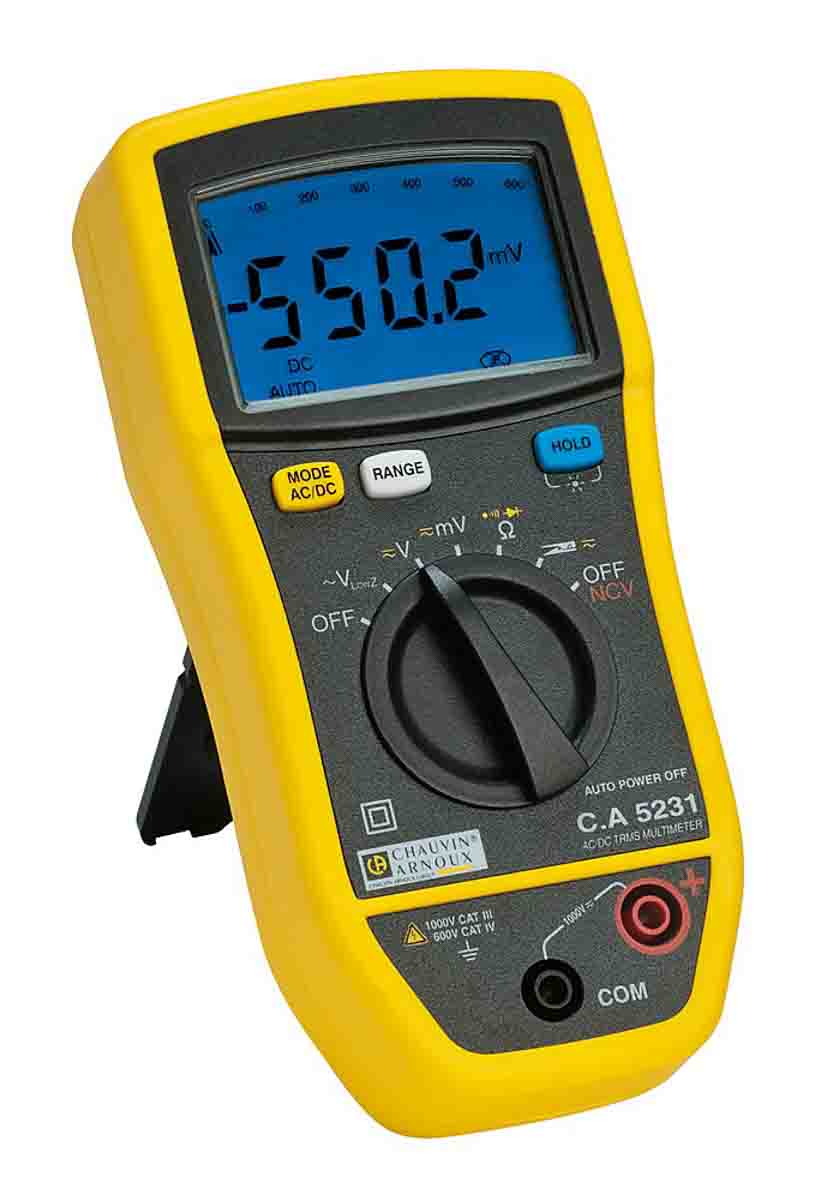

Model Number p:
CA 5231
Multimeter Type:
Handheld
Maximum Frequency:
3kHz
Functions Measured:
AC Current, AC Voltage, Continuity, DC Current, DC Voltage, Diode, Resistance
Safety Category Level:
CAT III, CAT IV
Safety Category Voltage:
600 V, 1000V
Best AC Current Accuracy:
±2 % + 3 Digits
Best AC Voltage Accuracy:
±2 % + 3 digits
Maximum Operating Temperature:
+50°C
Minimum Operating Temperature:
0°C
AC Current Measurement Resolution:
0.1A ac
AC Voltage Measurement Resolution:
0.01mV ac
DC Current Measurement Resolution:
0.1A dc
DC Voltage Measurement Resolution:
0.01mV dc
Resistance Measurement Resolution:
100mΩ
Capacitance Measurement Resolution:
10pF
Best Resistance Measurement Accuracy:
±0.2 % + 2 digits
Best Capacitance Measurement Accuracy:
±3.5 % + 4 digits
Best Temperature Measurement Accuracy:
±0.3 % + 4 digits
Absolute Maximum AC Current Measurement:
600A ac
Absolute Maximum AC Voltage Measurement:
1000V ac
Absolute Maximum DC Current Measurement:
600A dc
Absolute Maximum DC Voltage Measurement:
1000V dc
Absolute Maximum Resistance Measurement:
60MΩ
