Width:
44mm
Height:
156mm
Length:
74mm
Weight:
250g
True RMS:
No
Calibrated:
UKAS
Dimensions:
74 x 44 x 156mm
Battery Type:
AAA 1.5 V, AM4, IEC LR03
Display Type:
Digital
Model Number p:

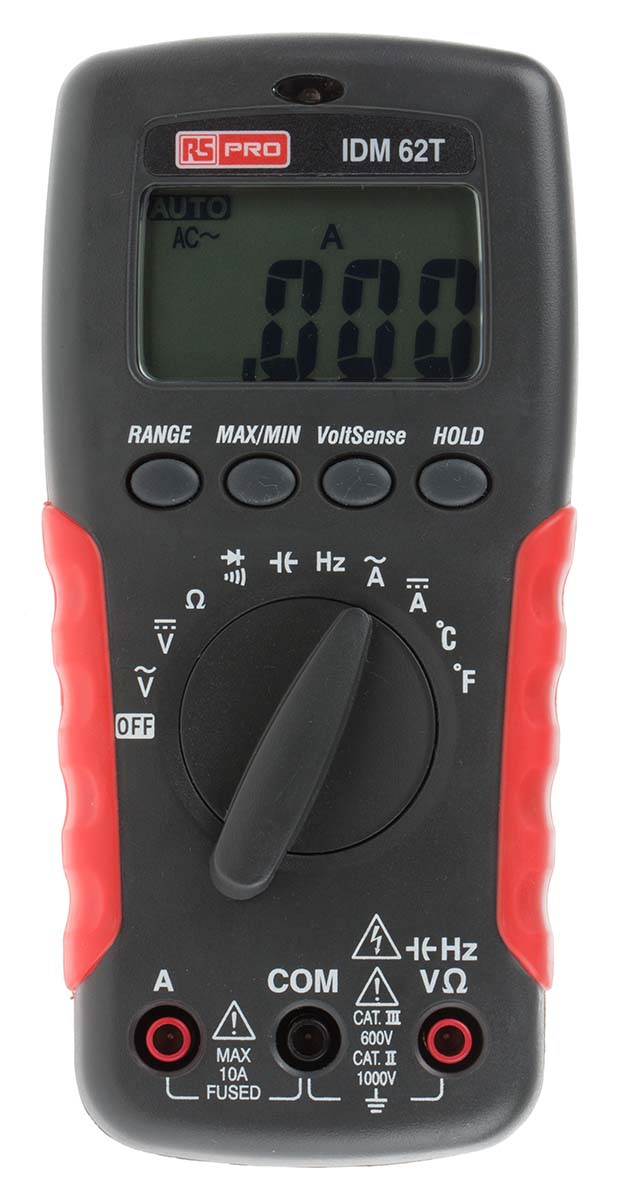

IDM62T
Multimeter Type:
Handheld
Maximum Frequency:
20MHz
Functions Measured:
AC Current, AC Voltage, Capacitance, Continuity, DC Current, DC Voltage, Diode, Frequency, Resistance, Temperature
Safety Category Level:
CAT II, CAT III
Safety Category Voltage:
600 V, 1000V
Best AC Current Accuracy:
±1.5% + 5 Digits
Best AC Voltage Accuracy:
±1.5% + 5 Digits
Best DC Current Accuracy:
±1% + 3 Digits
Best DC Voltage Accuracy:
±0.5% + 2 Digits
Maximum Operating Temperature:
+50°C
Minimum Operating Temperature:
0°C
AC Current Measurement Resolution:
1mA ac
AC Voltage Measurement Resolution:
0.1mV ac
DC Current Measurement Resolution:
1mA dc
DC Voltage Measurement Resolution:
0.1mV dc
Resistance Measurement Resolution:
100mΩ
Capacitance Measurement Resolution:
1pF
Temperature Measurement Resolution:
0.1 °C, 1°F
Best Resistance Measurement Accuracy:
±0.7% + 2 Digits
Best Capacitance Measurement Accuracy:
±1.9% + 8 Digits
Best Temperature Measurement Accuracy:
±1 %
Absolute Maximum AC Current Measurement:
10A ac
Absolute Maximum AC Voltage Measurement:
750V ac
Absolute Maximum DC Current Measurement:
10A dc
Absolute Maximum DC Voltage Measurement:
1000V dc
Absolute Maximum Resistance Measurement:
20MΩ
Absolute Maximum Capacitance Measurement:
2mF
Absolute Maximum Temperature Measurement:
+1472 °F, +800°C
