Width:
218mm
Height:
73mm
Length:
195mm
Weight:
1.3 (Without Power Cord)kg
True RMS:
Yes
Calibrated:
RSCAL
Dimensions:
195 x 218 x 73mm
Battery Type:
1.5 V AA LR6, AM3
Display Type:
Digital

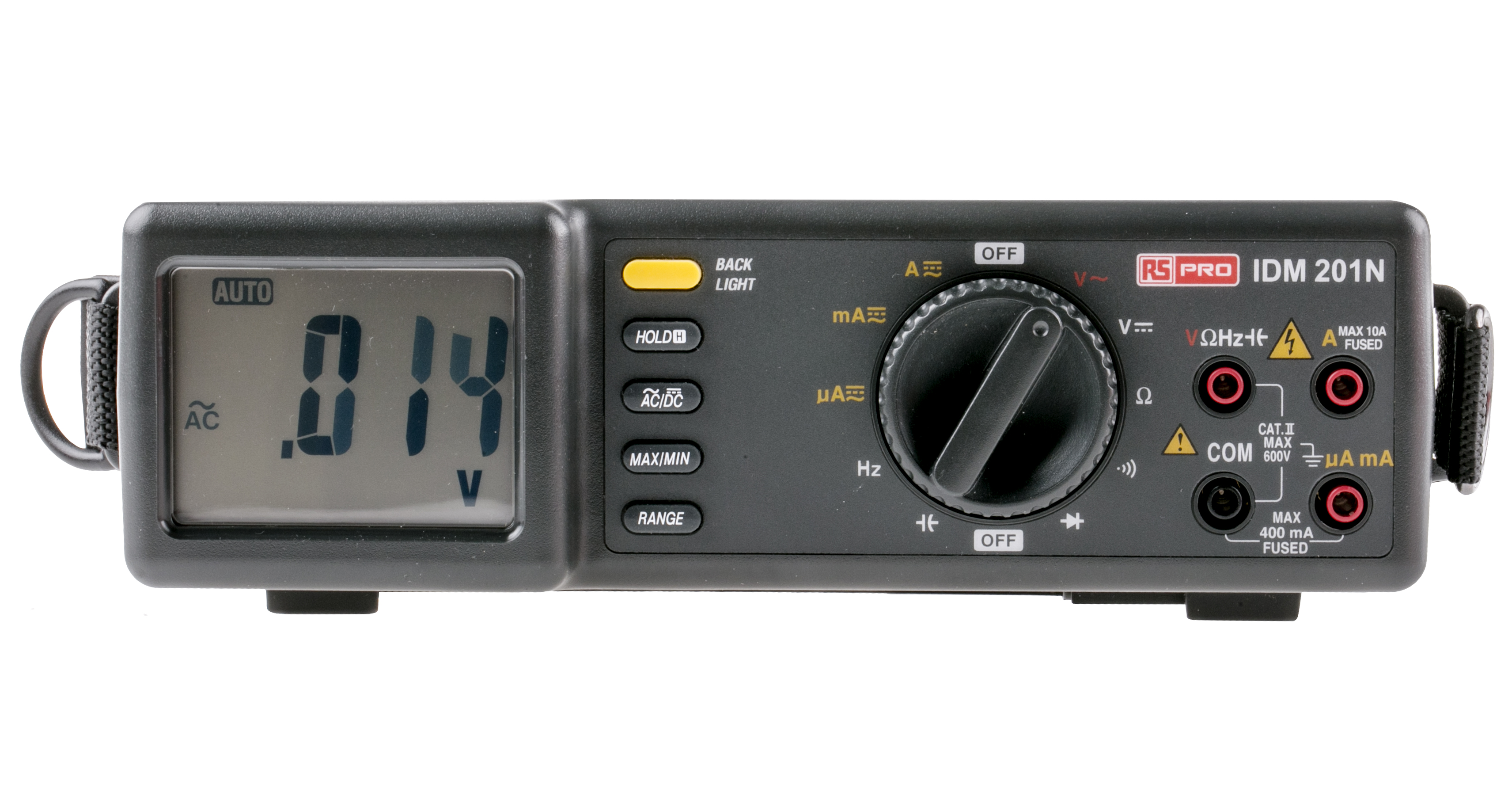

Model Number p:
IDM201
Multimeter Type:
Bench
Maximum Frequency:
20MHz
Functions Measured:
AC Current, AC Voltage, Capacitance, DC Current, DC Voltage, Frequency, Resistance
Safety Category Level:
CAT II, CAT III
Safety Category Voltage:
300 V, 600V
Best AC Current Accuracy:
±1.5% + 5 Digits
Best AC Voltage Accuracy:
±1.5% + 5 Digits
Best DC Current Accuracy:
±1% + 2 Digits
Best DC Voltage Accuracy:
±0.5% + 2 Digits
Maximum Operating Temperature:
+50°C
Minimum Operating Temperature:
0°C
AC Current Measurement Resolution:
0.1µA ac
AC Voltage Measurement Resolution:
100µV ac
DC Current Measurement Resolution:
0.1µA dc
DC Voltage Measurement Resolution:
100µV dc
Resistance Measurement Resolution:
100mΩ
Capacitance Measurement Resolution:
1pF
Best Resistance Measurement Accuracy:
±0.7% + 3 Digits
Best Capacitance Measurement Accuracy:
±1.9% + 8 Digits
Absolute Maximum AC Current Measurement:
10A ac
Absolute Maximum AC Voltage Measurement:
600V ac
Absolute Maximum DC Current Measurement:
10A dc
Absolute Maximum DC Voltage Measurement:
600V dc
Absolute Maximum Resistance Measurement:
20MΩ
Absolute Maximum Capacitance Measurement:
2mF
